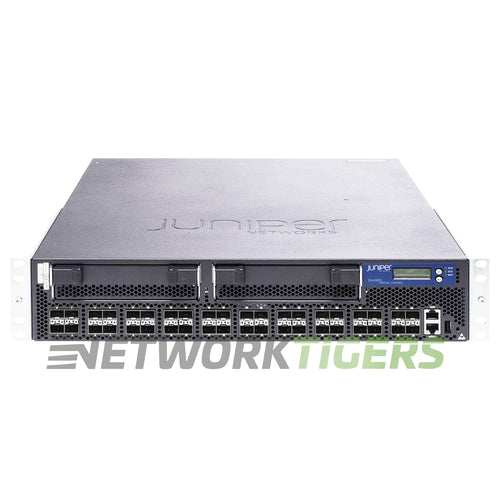

The Juniper EX4500-40F-VC1-BF is the EX4500 build that arrives with the 128 Gbps Virtual Chassis Interconnect module, so it can stack with other EX4500 switches into one managed system of up to 10 members. Its 40 SFP/SFP+ ports run at GbE or 10GbE, and the 2U chassis is cooled back-to-front.
The Virtual Chassis module provides two 64 Gbps ports, cabled with Juniper EX-CBL-VCP leads from 0.5 m to 5 m. On the data side Juniper quotes 480 Gbps of bandwidth, 714 Mpps and a 32,000-entry MAC table. Two uplink module slots stay open for EX4500-UM-4XSFP cards.
Included with this listing: the switch, one AC power supply with power cord, one fan module and a set of rack mount brackets. Transceivers, network modules and stacking cables are not included.
The NEW EX4500-40F-VC1-BF is the new twin. For front-to-back racks pick the EX4500-40F-VC1-FB, and the EX-CBL-VCP-3M 3 m Virtual Chassis cable links members across neighboring racks.
This seller refurbished Juniper EX4500 switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 40x 10GB SFP+
- Management Ports : 1x RJ45 Serial Console, 1x Gigabit Management RJ45, 1x USB port
- Stacking Ports : 1x EX4500-VC1-128G Virtual Chassis module, 2x 64 Gbps Virtual Chassis ports (up to 10 members)
- Stacking Cable Options : EX-CBL-VCP-50CM, EX-CBL-VCP-1M, EX-CBL-VCP-3M, EX-CBL-VCP-5M
- Module Slots : 2x uplink module slots (none included)
- Module Options : EX4500-UM-4XSFP
- AirFlow Direction : Back-to-front
- Fan Module Options : 1x EX4500-FANTRAY-BF Fan Tray
- Power Supplies Included : 1x EX4500-PWR1-AC-BF (2 power supply bays)
- Power Supply Options : EX4500-PWR1-AC-BF
- Switching Capacity : 480 Gbps
- Forwarding Rate : 714 Mpps
- MAC Address Table Size : 32,000
- Model Number : EX4500-40F-VC1-BF
- Part Number : EX4500-40F-VC1-BF
- Condition : Seller refurbished
- One (1) Seller Refurbished Juniper EX4500-40F-VC1-BF 40x 10GB SFP+ 2x Mod Slot Back-to-Front Airflow Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
