NEW Juniper EX4500-40F-VC1-BF 40x 10GB SFP+ 2x Mod Slot Back-to-Front Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1586
UPC: 832938053434

Overview

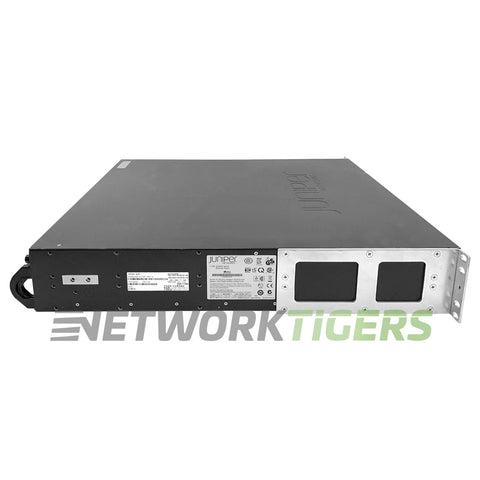

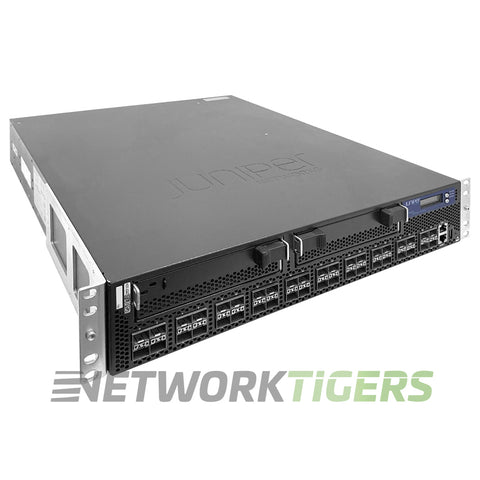

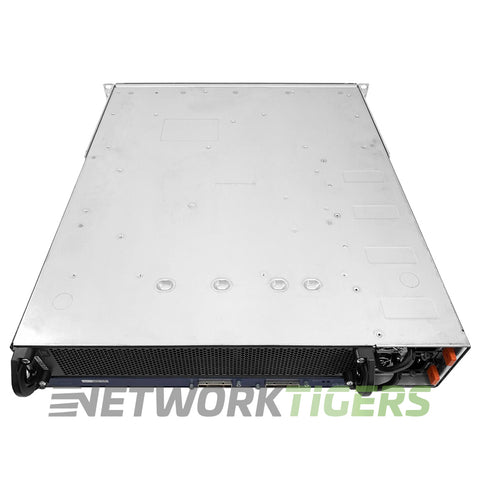

The Juniper EX4500-40F-VC1-BF combines 40 GbE/10GbE SFP/SFP+ ports with a factory-fitted EX4500-VC1-128G Interconnect module, letting the switch join a Virtual Chassis without buying a separate Virtual Chassis module. Cooling runs back-to-front through the 2U chassis, the direction to choose when the rack's cold air arrives from the rear.

That stacking module exposes two 64 Gbps ports and supports up to 10 members managed as a single switch. Bandwidth is rated at 480 Gbps with 714 Mpps of throughput, and the hardware MAC table stores 32,000 addresses. Data Center Bridging with eight PFC queues is supported in hardware. A pair of uplink module slots accept the four-port EX4500-UM-4XSFP.

This listing is one NEW switch. Juniper's description of this model lists a 1200 W AC power supply; optics, uplink modules and stacking cables are sold separately.

If budget matters more than a new unit, the seller refurbished back-to-front VC1 switch is the same model. For the opposite airflow, see the NEW EX4500-40F-VC1-FB.

This Juniper EX4500-40F-VC1-BF switch is new open box and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 40x 10GB SFP+
  • Management Ports : 1x RJ45 Serial Console, 1x Gigabit Management RJ45, 1x USB port
  • Stacking Ports : 1x EX4500-VC1-128G Virtual Chassis module, 2x 64 Gbps Virtual Chassis ports (up to 10 members)
  • Stacking Cable Options : EX-CBL-VCP-50CM, EX-CBL-VCP-1M, EX-CBL-VCP-3M, EX-CBL-VCP-5M
  • Module Slots : 2x uplink module slots (none included)
  • Module Options : EX4500-UM-4XSFP
  • AirFlow Direction : Back-to-front
  • Fan Module Options : 1x EX4500-FANTRAY-BF Fan Tray
  • Power Supplies Included : 1x EX4500-PWR1-AC-BF (2 power supply bays)
  • Power Supply Options : EX4500-PWR1-AC-BF
  • Switching Capacity : 480 Gbps
  • Forwarding Rate : 714 Mpps
  • MAC Address Table Size : 32,000
  • Model Number : EX4500-40F-VC1-BF
  • Part Number : EX4500-40F-VC1-BF
  • Condition : New


Included

  • One (1) NEW Juniper EX4500-40F-VC1-BF 40x 10GB SFP+ 2x Mod Slot Back-to-Front Air Switch as described above
