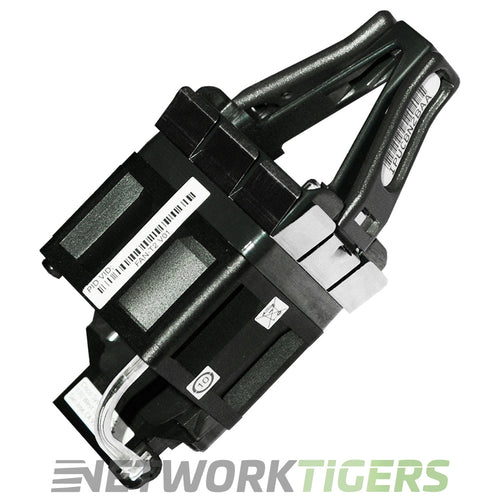

The Cisco FAN-T2 is the field-replaceable fan module for Catalyst 9300 switches, and Cisco also lists it in the Catalyst 9200 Series data sheet. A Catalyst 9300 runs three of these hot-swappable 12 V fans, with front-to-rear and side-to-rear airflow.
Each fan has a status LED that shows green when working and amber on a failure. The switch can keep running on two fans, but Cisco advises replacing a failed fan as soon as possible.
This listing ships one fan module.
A typical host is the Cisco C9300-48P-A 48-port PoE+ switch, which also takes the Cisco PWR-C1-715WAC-P 715 W power supply.
This seller refurbished Cisco FAN-T2 fan module is tested, working, and covered by the NetworkTigers one-year warranty.
- Air Flow Direction : Front-to-Back (I/O to PSU)
- Compatible Devices : Catalyst 9300 and 9200 Series Switches
- Number of Fans : 1
- Model Number : FAN-T2
- Part Number : FAN-T2, FAN-T2=, FAN-T2-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco FAN-T2 Fan Module for the Catalyst 9300 and 9200 Series Switches as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
