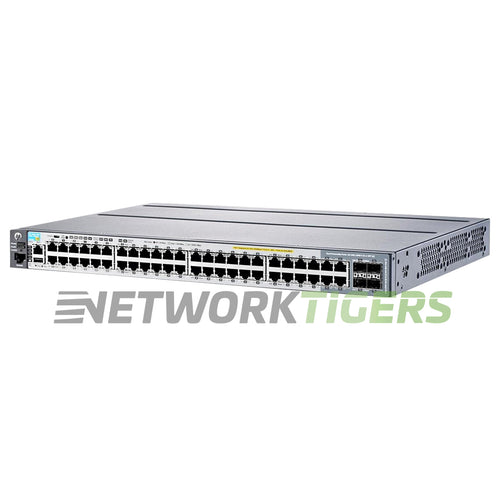

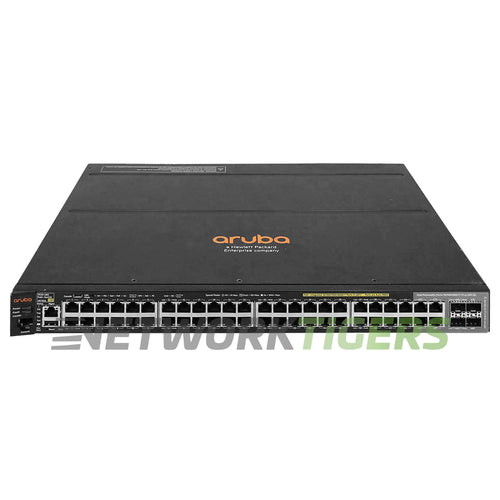

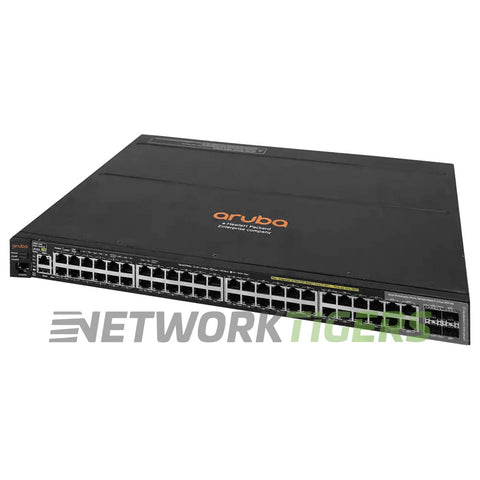

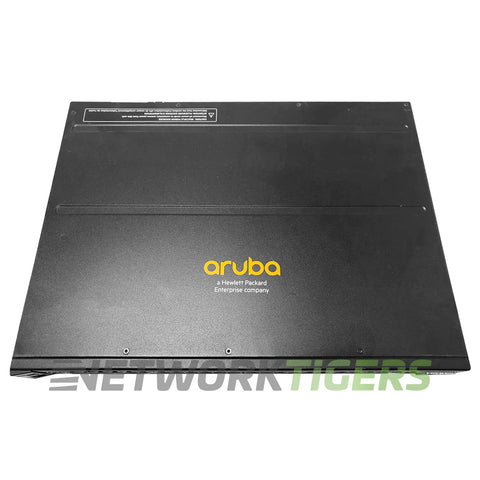

HPE Aruba J9836A 2920-48G-POE+ 44x 1GB PoE+ RJ45 4x Combo 2x Mod Slot Switch

$ 269.99
$ 234.99
17 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-2555 ASK FOR QUOTE
UPC: 887758353578

Overview

The HPE Aruba J9836A is the 2920-48G-PoE+ 740W Switch, the high-power model of the series. It has 44 PoE+ Gigabit RJ45 ports and 4 PoE+ dual-personality ports, and its 1050 W J9737A supply gives a 740 W PoE budget, double the 370 W of the standard 2920-48G-PoE+.

Switching capacity is 176 Gbps at 130.9 Mpps, the same as the other 48-port 2920s. The two 10GbE module slots and the stacking slot work the same way across the series, so it can stack with lower-power 2920s.

A spare 1050 W supply is the J9737A; for supply redundancy HPE lists the J9805A 640 external/redundant power supply. A new open box 2920-48G-PoE+ 740W is also listed.

This listing ships with its J9737A power supply, a power cord and a set of rack mount brackets. The stacking module and stacking cables are not included.

This seller refurbished HPE Aruba J9836A switch is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 44x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 4x 1 Gigabit Combo (SFP/RJ45)
  • Management Ports : 1x Dual-Personality (RJ45 or USB micro-B), 1x USB 1.1, 1x Out of Band RJ45 Management
  • Stacking Ports : 1x Stacking Module Slot - J9733A Stacking Module not included
  • Stacking Cable Options : J9734A (0.5m), J9735A (1m), J9736A (3m) - none included
  • Module Slots : 2x Expansion Slots - Modules not included
  • Module Options : J9731A (HPE 2920 2-Port 10GbE SFP+ Module), J9732A (HPE 2920 2-port 10GBASE-T Module)
  • Power Supplies Included : 1x PSU Slot - 1x J9737A (HP X332 1050W 110-240VAC to 54VDC Power Supply Included
  • PoE Budget : 740 W
  • Switching Capacity : 176 Gbps
  • Forwarding Rate : 130.9 Mpps
  • Alternative Model Number : 2920-48G-POE+
  • DRAM and Flash : 512 MB - SDRAM, 1 GB Flash
  • Model Number : J9836A
  • Part Number : J9836A, 2920-48G-POE+, J9836A#ABA
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished HPE Aruba J9836A 2920-48G-POE+ 44x 1GB PoE+ RJ45 4x Combo 2x Mod Slot Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Network Modules Not Included
