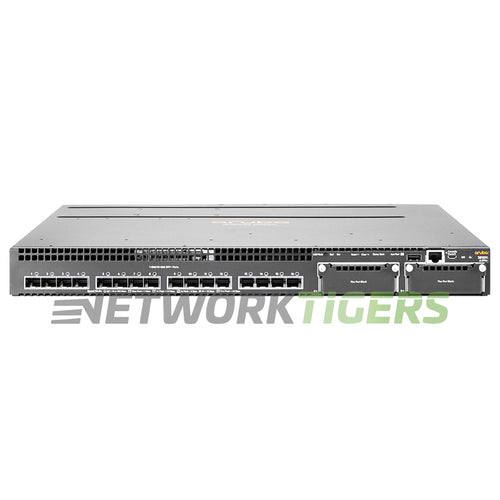

The HPE Aruba JL430A is the 3810M 24SFP+ 250W Switch: a JL075A 16-port SFP+ switch bundled with two JL083A 4-port SFP+ MACsec modules and an X371 250W supply (JL085A). That fills both module slots for a total of 24 SFP+ ports at 1 or 10GbE.
Capacity is 480 Gbps at 285.7 Mpps. There is no PoE. A second JL085A can go in the free supply slot for redundancy. The base switch without modules is the JL075A 3810M 16SFP+.
For stacking, add the JL084A stacking module. A new open box 3810M 24SFP+ 250W is also listed.
This listing ships with its power supply, a power cord, the fan tray and a set of rack mount brackets.
This seller refurbished HPE Aruba JL430A switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 24x 10 Gigabit Ethernet SFP+ (16x Fixed, 8x through use of module - see "Module Slots and Options")
- Product Family : Aruba 3810 Series
- Management Ports : 1x RJ45 Serial Console, 1x RJ45 Out of Band Management, 1x Dual-Personality (RJ45 or USB micro-B)
- Stacking Ports : 1x Stacking Module Slot (At Rear of Switch) - JL084A Module not included
- Stacking Cable Options : J9578A, J9665A, J9579A
- Module Slots : 2x Expansion Module Slots - 2x JL083A 4x 10GB SFP+ Modules Included
- Module Options : JL081A, JL084A, JL078A, JL083A, JL079A
- Fan Module Options : 1x Fan Tray included - JL088A
- Power Supplies Included : 1x JL085A 250W AC PSU included - 2x Slots - 2nd PSU ordered separately
- Power Supply Options : JL085A (250W), JL086A (680W), JL087A (1050W)
- Switching Capacity : 480 Gbps
- Forwarding Rate : Up to 285.7 Mpps
- MAC Address Table Size : 64,000
- Latency : < 2.8 µs (1000Mb)
- Model Number : JL430A
- Part Number : JL430A
- Condition : Seller refurbished
- One (1) Seller Refurbished HPE Aruba JL430A 3810M Series 24x 10GB SFP+ 250W Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
