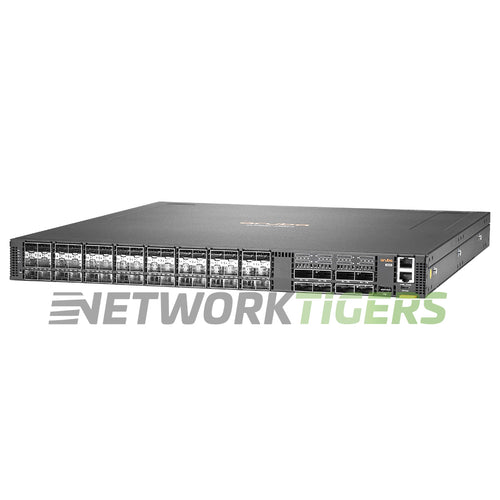

HPE Aruba JL625A 48x 25GB SFP28 8x 100GB QSFP28 Back-to-Front Airflow Switch

HPE Aruba JL625A 48x 25GB SFP28 8x 100GB QSFP28 Back-to-Front Airflow Switch

Ask for quote
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8267
UPC: 190017328737


The HPE Aruba JL625A switch offers 48x 25GB SFP28 ports and 8x 100GB QSFP28 ports with back-to-front airflow. With a switching capacity of up to 6.4 Tbps and a forwarding rate of 2,000 Mpps, this switch is designed for high-performance networking needs.

It features a MAC address table size of up to 128,000 entries, ensuring efficient data processing and delivery within your network infrastructure. The HPE Aruba JL625A delivers superior performance for demanding environments requiring fast and reliable connectivity solutions.

Aruba JL625A: Supports 48 ports of 1G/10G/25GbE (SFP/SFP+/SFP28) and 8 ports of 40G/100GbE (QSFP+/QSFP28) SFP+ ports (with an optional 10GBASE-T transceiver) - Back to Front Airflow.


  • Network Ports : 48x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 8x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ45 Serial, 1x Micro USB, 1x RJ45 Ethernet
  • Switch Version : AOS-CX
  • AirFlow Direction : Back-to-Front Airflow
  • Fan Module Options : 6x JL629A Fans included - Back-to-Front Airflow
  • Power Supplies Included : 2x JL633A Power Supplies included
  • Power Supply Options : JL632A is the F-B Airflow option
  • Switching Capacity : 6.4 Tbps
  • Forwarding Rate : 2,000 Mpps
  • MAC Address Table Size : 128,000
  • DRAM and Flash : 16GB RAM, 8GB Flash
  • Model Number : JL625A
  • Part Number : JL625A
  • Condition : Seller refurbished


  • One (1) Seller Refurbished HPE Aruba JL625A 48x 25GB SFP28 8x 100GB QSFP28 Back-to-Front Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Six (6) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
