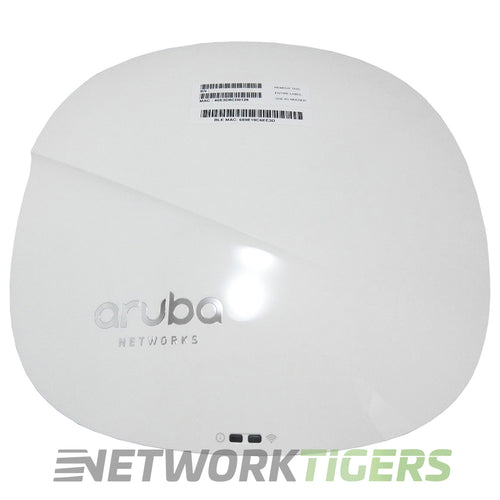

The HPE Aruba JW327A IAP-325 (US) is a dual-radio wireless access point manufactured by Hewlett Packard Enterprise. It features an integrated form factor and supports IEEE 802.11a/b/g/n/ac data link protocols with transmission speeds of up to 1,733 Mbps on the 5 GHz band and up to 600 Mbps on the 2.4 GHz band.
This model includes eight integrated downtilt omnidirectional antennas supporting a 4x4:4 MU-MIMO configuration for enhanced multi-user throughput. The maximum antenna gain reaches 3.5 dB at 2.4 GHz and 5 dB at around 5 GHz within U.S.-specified regulatory domains. The unit offers flexibility in deployment via ceiling- or wall-mounting options and draws power via PoE, per standard configurations, for centralized management capabilities using Aruba Instant architecture without requiring external controllers.
Aruba JW327A: Aruba Instant IAP-325 (US) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna AP.
- Interface Ports : 2x 1 Gigabit Ethernet PoE RJ45
- Management Ports : 1x RJ45 Console, 1x USB 2.0 (Type A)
- Antenna Options : 8x Integrated Downtilt Omni-Directional antennas for 4x4 MIMO
- Power Options : Power over Ethernet (PoE) - 48 Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 12 Vdc nominal, +/- 5% - Power Sources are sold separately
- Max Gain : 3.5 dB in 2.4 GHz and 5.0 dB in 5 GHz
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wireless Protocol :
- Maximum Data Rate : 5 GHz (1,733 Mbps max rate) and 2.4 GHz (600 Mbps max rate)
- Regulatory domain : US
- Mounts : Included - The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling - JW045A
- Model Number : JW327A
- Part Number : JW327A, IAP-325, IAP-325-US
- Condition : Seller refurbished
- One (1) Seller Refurbished HPE Aruba JW327A IAP-325 (US) Instant Dual Radio 802.11ac 4x4:4 MU-MIMO WAP as described above
- One (1) Mount Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or on the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
