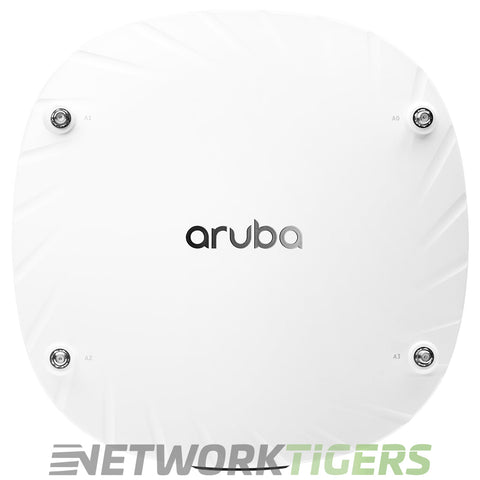

Experience blazing fast wireless connectivity with the NEW HPE Aruba JZ332A AP-534 (US) Dual Radio 802.11ax Access Point. Equipped with state-of-the-art technology, including 4x4:4 MU-MIMO and OFDMA, this device ensures seamless data transmission at lightning speed.
The HPE Aruba JZ332A AP-534 is a dual radio 802.11ax wireless access point with MU-MIMO and OFDMA technology, designed for high-performance Wi-Fi connectivity in the US market. It operates on both the 2.4 GHz and 5 GHz frequency bands, offering an aggregate bandwidth of up to 3.55 Gbps.
Aruba JZ332A: Aruba AP-534 (US) Dual Radio 4x4:4 802.11ax External Antennas Unified Campus AP.
- Wi-Fi Standard : Wi-Fi 6 (802.11ax) - OFDMA - Bidirectional MU-MIMO (uplink and downlink in 5 GHz - downlink only in 2.4 GHz)
- Managed By : HPE Aruba Networking Central (cloud) or on-premises controller/gateway
- Suggested Use : Indoor enterprise campus environments
- Region : US
- Radios : Dual radio - 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 4x4 MIMO
- Spatial Streams per Radio : 4
- Maximum Data Rate : 2.97 Gbps combined (2.4 Gbps @ 5 GHz HE80 - 574 Mbps @ 2.4 GHz HE20)
- Bluetooth / IoT Radios : Bluetooth 5.0 BLE and Zigbee (802.15.4) - 2.4 GHz
- PoE Standard : 802.3at (class 4) or 802.3bt (class 5) on E0 and/or E1
- DC Power Input : 48 Vdc nominal (+/-5%) - 1.35 mm / 3.5 mm center-positive circular plug - 9.5 mm length
- Uplink Ports : 2x 100/1000/2500/5000BASE-T HPE SmartRate RJ-45 (E0 and E1)
- Other Ports : USB 2.0 Type-A (up to 1A/5W) - Serial console (micro-B USB), 1x Kensington security slot
- Antenna Type : External - requires external dual-band antennas (sold separately)
- Antenna Ports : 4x RP-SMA female connectors (A0 through A3) for external dual-band antennas
- Antenna Options : AP-ANT-1W (JW009A) - AP-ANT-13B (JW001A) - AP-ANT-19 (JW004A) - AP-ANT-20W (JW011A) - AP-ANT-40 (JW017A) - AP-ANT-45 (JW018A) - all sold separately
- Mounting Options : AP-OUT-MNT-V1A (Pole/Wall Long) - AP-270-MNT-H1 (Hanging/Tilt) - AP-270-MNT-H2 (Flush Wall/Ceiling) - AP-270-MNT-H3 (Hanging/Dual-Tilt) - all sold separately
- Mounts Included : Mounting bracket pre-installed on back of unit - additional mount kits sold separately
- Model Number : JZ332A
- Part Number : JZ332A, AP-534, AP-534-US
- Condition : New
- One (1) NEW HPE Aruba AP-534 JZ332A Wi-Fi 6 802.11ax External Antenna Campus Wireless AP as described above
