NEW HPE Aruba AP-535 JZ337ACM US Wi-Fi 6 802.11ax Int Ant Central Managed WAP

Ask for quote

Shipping: OVERNIGHT OPTION

Condition: New

Warranty: 365 days

SKU: NSN-7778

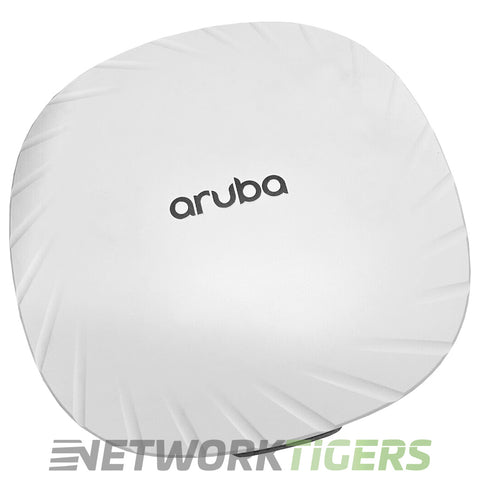

The HPE Aruba JZ337ACM CM AP-535 (US) Dual Radio 802.11ax WAP operates on both the 2.4 GHz and 5GHz frequencies, providing an aggregate bandwidth of up to 3.55 Gbps with its high-speed connectivity capabilities.

The maximum data rate for the device is outstanding, delivering up to 1.150 Mbps at a speed in the lower spectrum and reaching impressive speeds of up to 2.4 Gbps when operating in the higher frequency range.

Equipped with MU-MIMO OFDMA technology, this wireless access point ensures efficient multi-user performance by allowing multiple devices to transmit simultaneously without compromising speed or reliability within a US regulatory domain setting such as homes or businesses needing reliable Wi-Fi coverage throughout their environment.

HPE Aruba JZ337ACM CM AP-535 (US) Dual Radio 802.11ax 4x4:4 MU-MIMO OFDMA WAP

Wi-Fi Standard : Wi-Fi 6 (802.11ax) - OFDMA - Bidirectional MU-MIMO (uplink and downlink in 5 GHz - downlink only in 2.4 GHz)
Managed By : HPE Aruba Networking Central (cloud) or on-premises controller/gateway - Central Managed (CM)
Suggested Use : Indoor enterprise campus environments
Region : US
Radios : Dual radio - 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 4x4 MIMO
Spatial Streams per Radio : 4
Maximum Data Rate : 2.97 Gbps combined (2.4 Gbps @ 5 GHz HE80 - 574 Mbps @ 2.4 GHz HE20)
Bluetooth / IoT Radios : Bluetooth 5.0 BLE and Zigbee (802.15.4) - 2.4 GHz
PoE Standard : 802.3at (class 4) or 802.3bt (class 5) (E0 and/or E1) - Injector sold separately
DC Power Input : 48 Vdc nominal (+/-5%) - 1.35 mm / 3.5 mm center-positive circular plug - 9.5 mm length - Adapter sold separately
Uplink Ports : 2x 100/1000/2500/5000BASE-T HPE SmartRate RJ-45 (E0 and E1)
Other Ports : 1x USB 2.0 Type-A (up to 1A/5W), 1x Serial console (micro-B USB)
Antenna Type : Internal - 4x integrated dual-band downtilt omnidirectional - 3.5 dBi peak @ 2.4 GHz - 5.4 dBi peak @ 5 GHz - BLE/Zigbee integrated omnidirectional 3.1 dBi peak
Antenna Ports : N/A - Internal Antenna
Mounting Options : Sold Separately - R3J15A (Type A, flat rail 9/16), R3J16A (Type B, flat rail 15/16), R3J17A (Type C, profile rail 9/16), R3J18A (Type D, solid surface), R3J19A (Type E, wall-box)
Mounts Included : Mounting bracket pre-installed on back of unit - additional mount kits sold separately
Model Number : JZ337ACM
Part Number : JZ337ACM
Condition : New
