NEW nVidia Mellanox MCX631102AN-ADAT ConnectX-6 LX 2x 25GB SFP28 PCIe 4.0 x8 NIC
New

NEW nVidia Mellanox MCX631102AN-ADAT ConnectX-6 LX 2x 25GB SFP28 PCIe 4.0 x8 NIC

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

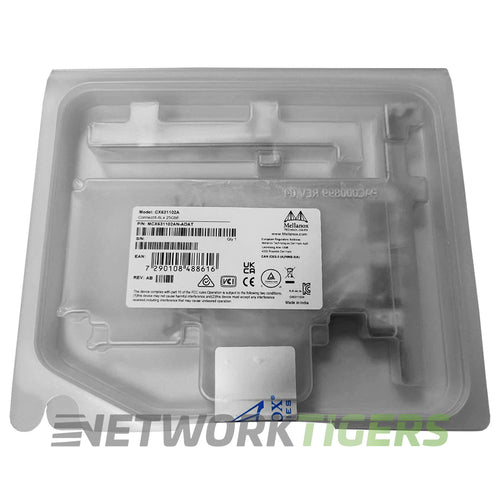

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1084

Overview

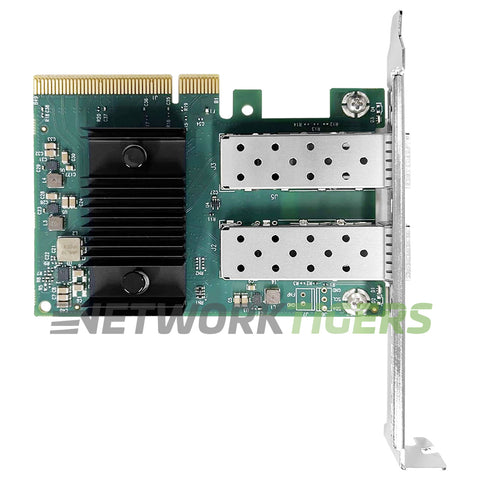

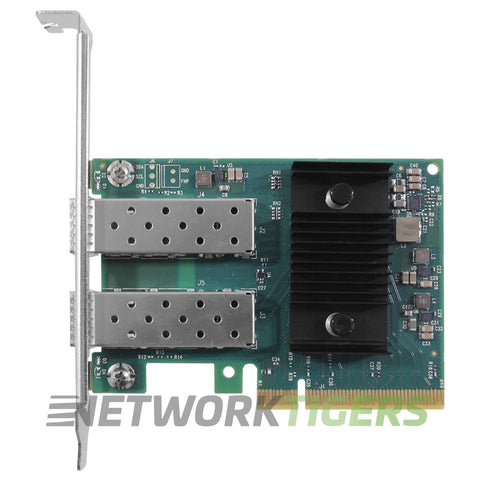

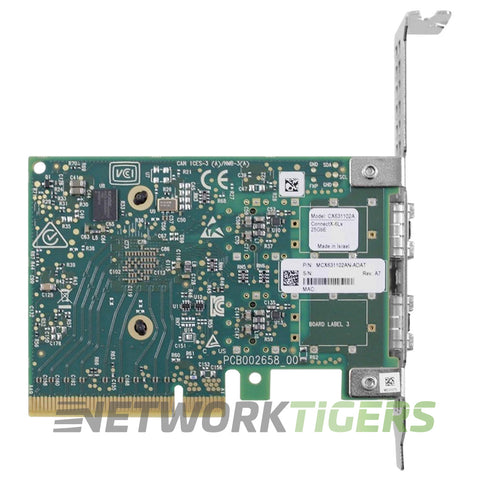

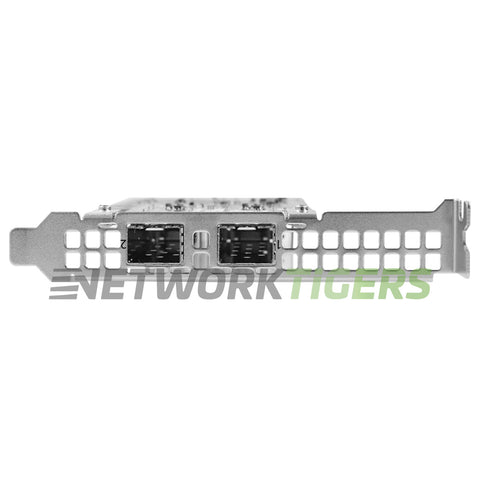

The nVidia Mellanox MCX631102AN-ADAT is a PCIe 4.0 x8 low-profile network interface card featuring two SFP28 ports, supporting transmission speeds up to 25 Gbps per port.

Compatible with industry-standard servers and data center platforms, the ConnectX-6 LX series supports dual-port operation over fiber via SFP28 transceivers. Designed for mounting in standard half-height slots using passive or active cooling configurations depending on system requirements.

nVidia Mellanox MCX631102AN-ADAT: ConnectX-6 25GbE Adapter Card.


Specifications

  • Module Type : Network Interface Card
  • Network Ports : 2x 25 Gigabit SFP28
  • PCIe Interface : PCIe Gen 4.0 SERDES @ 16.0GT/s x8
  • Series : Mellanox ConnectX-6 LX
  • Performance : 25 Gbps Per Port
  • nVidia SKU : 900-9X662-0053-ST1
  • Model Number : MCX631102AN-ADAT
  • Part Number : MCX631102AN-ADAT, 900-9X662-0053-ST1
  • Condition : New

Datasheet

More information on this nVidia MCX631102AN-ADAT.

Included

  • One (1) NEW nVidia Mellanox MCX631102AN-ADAT ConnectX-6 LX 2x 25GB SFP28 PCIe 4.0 x8 NIC as described above
