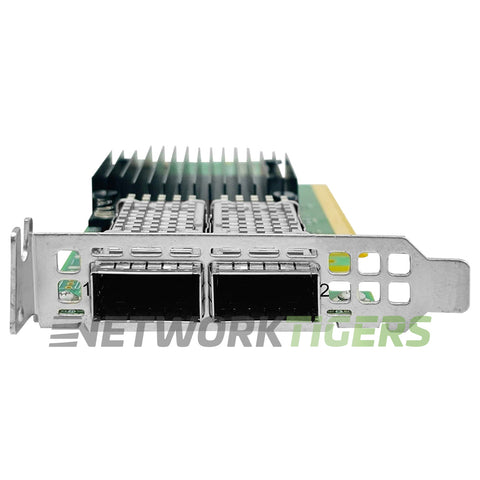

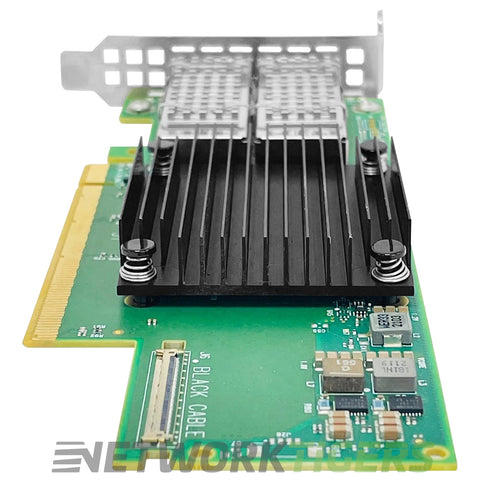

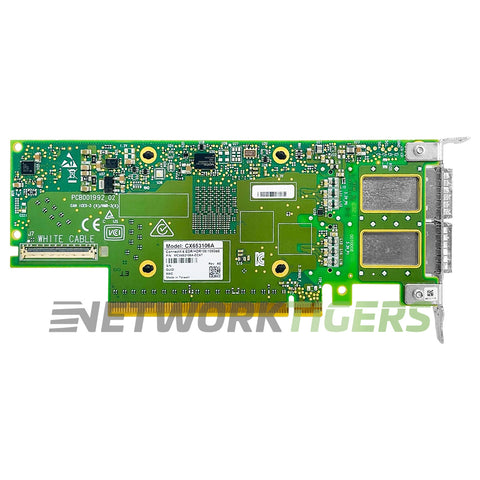

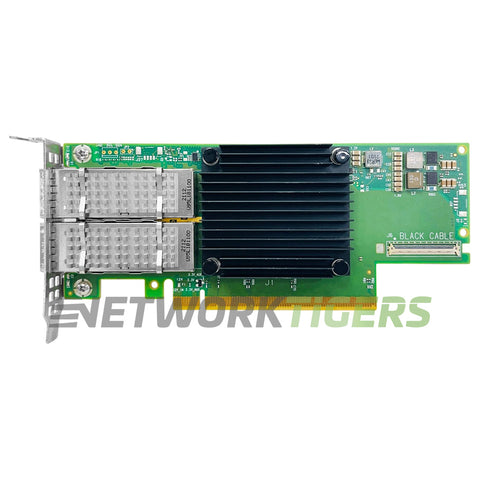

The nVidia MCX653106A-ECAT (SKU: 900-9X6AF-0056-MT1) is a PCIe Half Height, Half Length Network Interface Card supporting two QSFP56 ports. It features a host interface of PCIe 3.0/4.0 x16 and supports Ethernet speeds of 10/25/40/50/100 Gb/s and InfiniBand modes SDR to HDR100.
This NIC offers dual-port connectivity for high-speed network applications using standard QSFP56 connectors. Suitable for systems with compatible low-profile expansion slots, it allows mounting in constrained enclosures due to its compact form factor (167.65 mm × 68.90 mm).
nVidia MCX653106A-ECAT: ConnectX-6 InfiniBand/Ethernet adapter card, 100Gb/s (HDR100, EDR IB and 100GbE), dual-port QSFP56, PCIe3.0/4.0 x16, tall bracket.
- Module Type : Network Interface Card
- Network Ports : 2x 100 Gigabit Ethernet QSFP56
- Form Factor : PCIe Half Height, Half Length / 167.65mm x 68.90mm
- Host Interface : PCIe3.0/4.0 x16
- Performance : Ethernet = 10/25/40/50/100 Gb/s. InfiniBand = SDR, DDR, QDR, FDR, EDR, HDR100
- nVidia SKU : 900-9X6AF-0056-MT1
- Model Number : MCX653106A-ECAT
- Part Number : MCX653106A-ECAT, 900-9X6AF-0056-MT1
- Condition : New
- One (1) NEW nVidia Mellanox MCX653106A-ECAT 2x 100GB QSFP56 PCIe3.0/4.0 x16 NIC as described above
