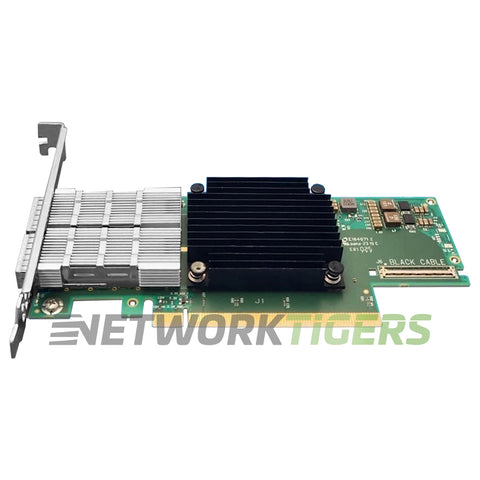

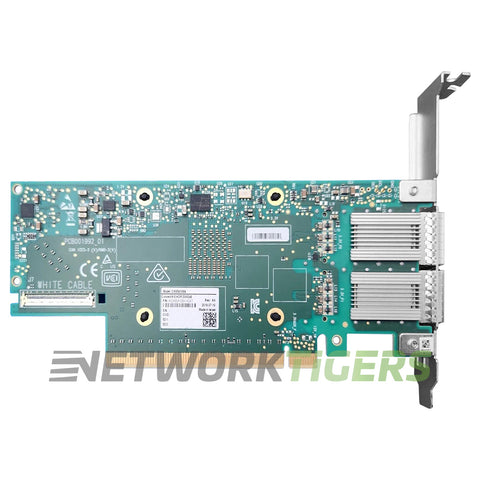

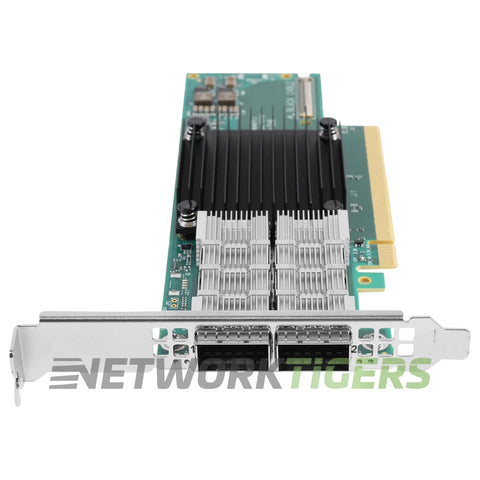

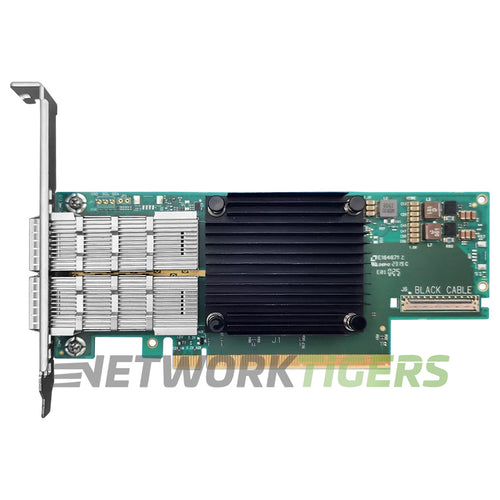

The nVidia Mellanox MCX654106A-HCAT ConnectX-6 is a network interface card in standard add-in form factor, supporting dual 200 Gigabit Ethernet via QSFP56 ports. It interfaces through PCIe Gen3/Gen4 x16 and offers up to 400 Gbps total throughput.
Compatible with systems that accept full-height PCIe x16 cards, this NIC supports two uplink ports using the QSFP56 transceiver type for high-speed data transmission over supported fiber or DAC cabling. Designed for use within server platforms utilizing compatible NVIDIA infrastructure, it enables scalable connectivity across large-scale computing environments requiring multi-port configurations on a single adapter module.
nVidia Mellanox MCX654106A-HCAT: ConnectX-6 InfiniBand/Ethernet adapter card, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, Socket Direct 2x PCIe3.0/4.0x16, tall bracket.
- Module Type : Network Interface Card
- Network Ports : 2x 200 Gigabit QSFP56 PCIe3.0/4.0x16
- PCIe Support : PCIe3.0/4.0x16
- nVidia SKU : 900-9X6B4-0058-DT0
- Performance : 200 Gbps (Ethernet)
- Series : Mellanox ConnectX-6
- Model Number : MCX654106A-HCAT
- Part Number : MCX654106A-HCAT, 900-9X6B4-0058-DT0
- Condition : Seller refurbished
- One (1) Seller refurbished nVidia Mellanox MCX654106A-HCAT ConnectX-6 2x 200GB QSFP56 PCIe3.0/4.0x NIC as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
