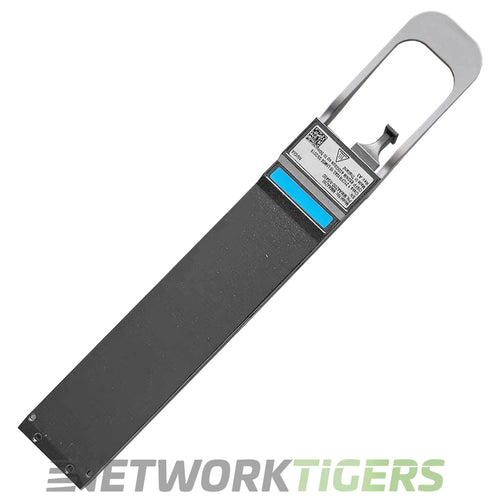

The NVIDIA Mellanox MMA4Z00-NS400 is a 400Gb/s single-port OSFP transceiver for short multimode fiber links, reaching up to 50m on OM4 fiber or 30m on OM3. It is the adapter-side optic for 400Gb/s NDR InfiniBand and 400GbE networks, built with a flat-top shell to fit ConnectX-7 OSFP adapter cages.
Use it in a ConnectX-7 OSFP adapter to connect a GPU or compute server to a Quantum-2 switch, which uses twin-port optics such as the MMA4Z00-NS on the switch side. The transceiver uses an 850nm SR4 design with a single MPO-12/APC connector, so it needs APC multimode fiber; standard UPC connectors will not mate. It detects InfiniBand or Ethernet automatically from the switch it connects to, and can also run at 200Gb/s on splitter fiber.
nVidia Mellanox MMA4Z00-NS400: 400Gb/s single-port OSFP, InfiniBand NDR and 400GbE, SR4 multimode, 850nm, MPO-12/APC, up to 50m, flat top.
- Form Factor : OSFP Transceiver
- Speed : 400 Gigabit
- Wavelength : 850nm
- Cable Type : MMF
- Connection Type : MPO-12/APC
- Cable Distance : 50m
- Digital Optical Monitoring : Yes
- Model Number : MMA4Z00-NS400
- Part Number : MMA4Z00-NS400
- Condition : Seller refurbished
- One (1) Seller refurbished nVidia Mellanox MMA4Z00-NS400 400GBASE-SR4 850nm 50m DOM MMF OSFP Transceiver as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website
