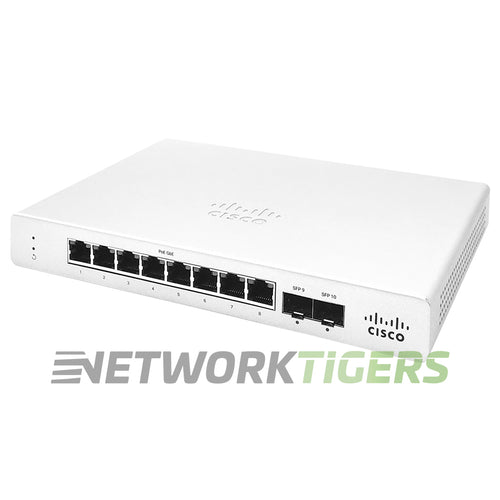

The Cisco Meraki MS120-8LP-HW is a compact 8-port PoE+ access switch managed from the Meraki Dashboard. It has eight Gigabit RJ-45 ports with PoE+ and two 1 Gigabit SFP uplinks, with 20 Gbps of switching capacity. There is no dedicated management port; setup and monitoring run from the cloud.
The PoE budget is 67W, enough for two devices at 30W PoE+ or several phones and cameras. Power comes from the MA-PWR-90WAC external AC adapter. The chassis measures 8.74 x 6 x 1.1 inches and weighs 2.76 lb, and integrated mounting slides let it sit on a desk or go on a wall.
The MS120 series does not stack physically. Virtual stacking in the Dashboard lets you change port settings across many switches at once, so a site with several closets is still run as one network from the cloud. It suits a small office, a conference room, or a reception desk that needs a phone, a camera, and an access point on one cable each.
For a larger PoE budget in the same size class, the MS120-8FP-HW with 124W PoE+ is the step up. A spare MA-PWR-90WAC 90W AC power adapter fits this switch, and the MA-SFP-1GB-SX multimode SFP fits the uplinks. The switch is sold unclaimed; a Meraki license is required, purchased separately.
This seller refurbished Cisco Meraki MS120-8LP-HW switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 8x 1 Gigabit Ethernet PoE+ RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
- Uplink Ports : 2x 1 Gigabit Ethernet SFP
- Management Ports : None - configured and monitored from the Meraki Dashboard
- Stacking Ports : None
- Stacking Options : Virtual stacking in the Meraki Dashboard only - no physical stacking
- Fan Module Options : Fanless Operation
- Power Supplies Included : 1x MA-PWR-90WAC Power Adapter Included
- PoE Budget : 67 W (Up to 2 ports simultaneously at 30W PoE+ 802.3at)
- Switching Capacity : 20 Gbps
- Forwarding Rate : 14.88 Mpps
- MAC Address Table Size : 16,000
- Model Number : MS120-8LP-HW
- Part Number : MS120-8LP-HW, MS120-8LP-HW=, MS120-8LP-HW-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco Meraki MS120-8LP-HW 8x 1GB PoE+ (67W) RJ45 2x SFP Unclaimed Switch w/PWR as described above
- One (1) Power Adapter Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Licenses are sold directly by Meraki
