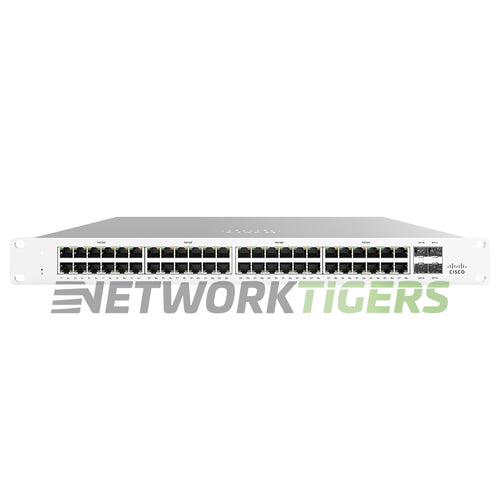

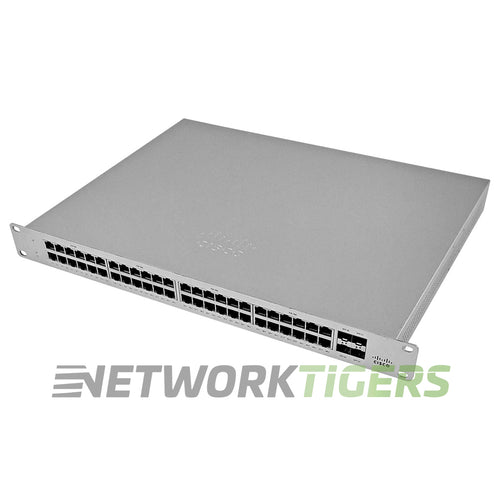

The Cisco Meraki MS120-48FP-HW is a 48-port 1U PoE+ access switch managed from the Meraki Dashboard. It has 48 Gigabit RJ-45 ports with PoE+ and four 1 Gigabit SFP uplinks, with 104 Gbps of switching capacity. A dedicated management port gives access to the local status page.
The PoE budget is 740W, enough for 24 devices at the full 30W PoE+ or all 48 ports at 15.4W PoE. The power supply is fixed and internal. The chassis is 1U, measures 17.32 x 13.4 x 1.73 inches, weighs 12.7 lb, and mounts in a standard 19-inch rack.
The MS120 series does not stack physically. Virtual stacking in the Dashboard lets you change port settings across many switches at once, so a site with several closets is still run as one network from the cloud. The FP model suits closets that power many access points, IP phones, and cameras at once.
If fewer ports need power, the MS120-48LP-HW with 370W PoE+ is the lower-budget option. For 10 Gigabit uplinks and the same 740W budget, see the MS125-48FP-HW, and for fiber uplinks, the MA-SFP-1GB-SX multimode SFP. The switch is sold unclaimed; a Meraki license is required, purchased separately.
This seller refurbished Cisco Meraki MS120-48FP-HW switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 1x RJ45 Management
- Stacking Ports : None
- Stacking Options : Virtual stacking in the Meraki Dashboard only - no physical stacking
- Power Supplies Included : 1x Internal AC Power Supply
- PoE Budget : 740W - up to 24 ports at 30W PoE+ or 48 ports at 15.4W PoE
- Switching Capacity : 104 Gbps
- Forwarding Rate : 77.38 Mpps
- MAC Address Table Size : 32,000
- Model Number : MS120-48FP-HW
- Part Number : MS120-48FP-HW, MS120-48FP-HW=, MS120-48FP-HW-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco Meraki MS120-48FP-HW 48x 1GB PoE+ (740W) RJ45 4x 1GB SFP Unclaimed Switch as described above
- One (1) Power Cord Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Licenses are sold directly by Meraki
