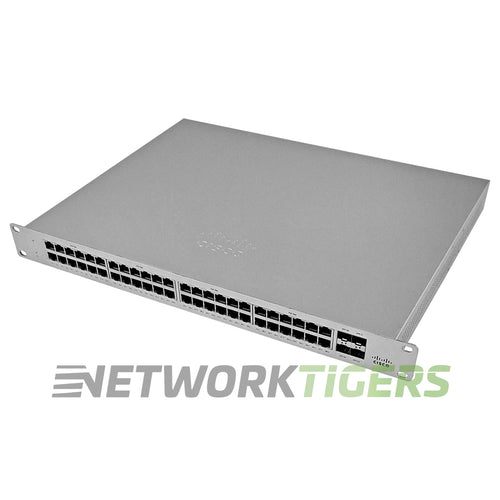

The Cisco Meraki MS120-48LP-HW is a 48-port 1U PoE+ access switch managed from the Meraki Dashboard. It has 48 Gigabit RJ-45 ports with PoE+ and four 1 Gigabit SFP uplinks, with 104 Gbps of switching capacity. A dedicated management port gives access to the local status page.
The PoE budget is 370W, enough for 12 devices at the full 30W PoE+ or 24 at 15.4W PoE. The power supply is fixed and internal. The chassis is 1U, measures 17.32 x 13.4 x 1.73 inches, weighs 12.7 lb, and mounts in a standard 19-inch rack.
The MS120 series does not stack physically. Virtual stacking in the Dashboard lets you change port settings across many switches at once, so a site with several closets is still run as one network from the cloud. The LP model fits closets with many wired desktops plus a moderate number of phones and access points.
If most ports need PoE+, the MS120-48FP-HW with 740W PoE+ doubles the budget. For a 24-port closet, see the MS120-24P-HW, and for 10 Gigabit uplinks, the MS125-48LP-HW. The switch is sold unclaimed; a Meraki license is required, purchased separately.
This seller refurbished Cisco Meraki MS120-48LP-HW switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 1x RJ45 Management
- Stacking Ports : None
- Stacking Options : Virtual stacking in the Meraki Dashboard only - no physical stacking
- Fan Module Options : Fanless Design
- Power Supplies Included : 1x Internal AC Power Supply
- PoE Budget : 370W - up to 12 ports at 30W PoE+ or 24 ports at 15.4W PoE
- Switching Capacity : 104 Gbps
- Forwarding Rate : 77.38 Mpps
- MAC Address Table Size : 32,000
- Model Number : MS120-48LP-HW
- Part Number : MS120-48LP-HW, MS120-48LP-HW=, MS120-48LP-HW-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco Meraki MS120-48LP-HW 48x 1GB PoE+ (370W) RJ45 4x 1GB SFP Unclaimed Switch as described above
- One (1) Power Cord Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Licenses are sold directly by Meraki
