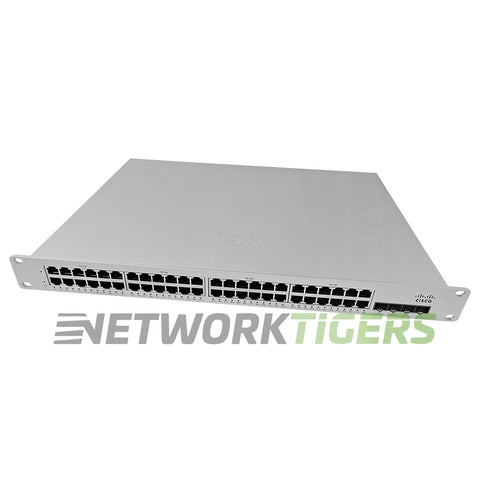

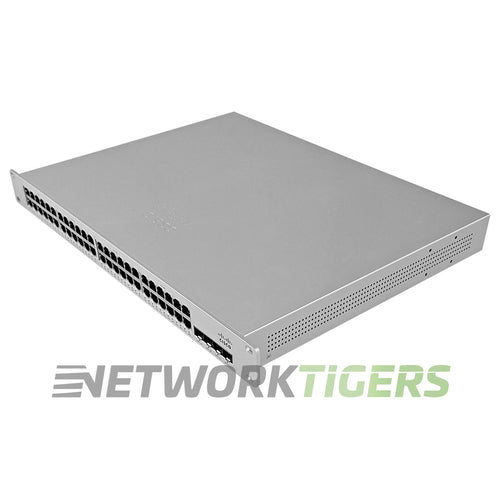

The Cisco Meraki MS225-48FP-HW is a 48-port 1U stackable PoE+ access switch managed from the Meraki Dashboard. It has 48 Gigabit RJ-45 ports with 802.3af and 802.3at PoE+ and four 10 Gigabit SFP+ uplinks, with 176 Gbps of switching capacity and a dedicated management port.
The FP model has a full 740W PoE budget, enough for all 48 ports at 15.4W or 24 ports at the full 30W, which suits dense closets of phones, cameras, and access points. Maximum power draw is 882W.
Two dedicated stack ports give 80 Gbps of stacking bandwidth across up to eight switches, and the MS225 stacks with MS210 switches too, using MA-CBL-40G cables sold separately. Power comes from a fixed internal supply with fixed internal fans, and an external RPS input is available for backup power. The 1U chassis is 19 x 13.38 x 1.72 inches and weighs 9.63 lb. The switch is sold unclaimed; a Meraki license is required, purchased separately.
If 370W is enough, the MS225-48LP-HW costs less. For hot-swap power supplies and Layer 3 routing, see the MS250-48FP-HW. Stack switches with the MA-CBL-40G-3M stacking cable, and the MA-SFP-10GB-SR SFP+ optic fits the uplinks.
This seller refurbished Cisco Meraki MS225-48FP-HW switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45 (802.3af/802.3at)
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 1x dedicated RJ-45 management port
- Stacking Ports : 2x dedicated stack ports - 80 Gbps stacking bandwidth
- Stacking Options : Physical stacking with MS210 and MS225 switches, up to 8 per stack - plus virtual stacking in the Dashboard
- Stacking Cable Options : MA-CBL-40G-50CM, MA-CBL-40G-1M, MA-CBL-40G-3M (not included)
- Fan Module Options : Fixed internal fans
- Power Supplies Included : 1x Fixed internal AC power supply
- Power Supply Options : Optional external RPS - requires a Cisco RPS 2300 chassis (not included)
- PoE Budget : 740W - Up to 48 devices PoE 802.3af (15.4W per port) - 24 devices PoE+ 802.3at (30W per port)
- Switching Capacity : 176 Gbps
- MAC Address Table Size : 32,000
- Model Number : MS225-48FP-HW
- Part Number : MS225-48FP-HW, MS225-48FP-HW=, MS225-48FP-HW-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco Meraki MS225-48FP-HW 48x 1GB PoE+ RJ45 4x 10GB SFP+ Unclaimed Switch as described above
- One (1) Power Cord Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Licenses are sold directly by Meraki
