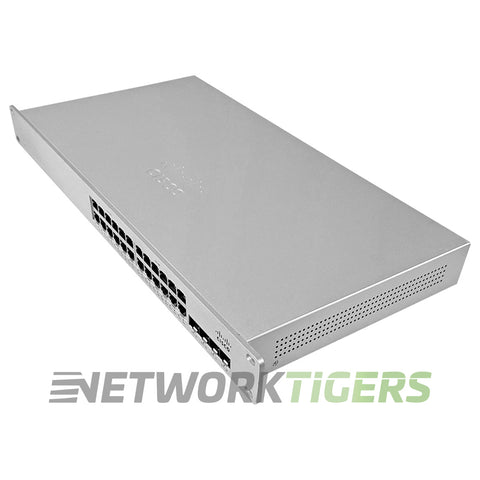

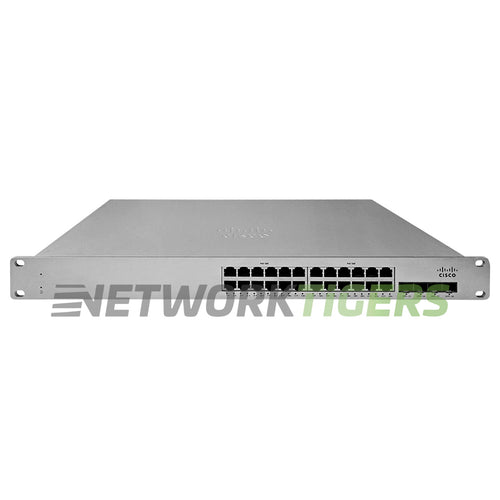

Cisco Meraki MS225-24P-HW 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Unclaimed Switch

Cisco Meraki MS225-24P-HW 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Unclaimed Switch

$ 659.99
$ 599.99
29 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-6499
UPC: 810979012825

Overview

The Cisco Meraki MS225-24P-HW is a highly capable and dependable switch with impressive features for demanding network environments. Equipped with 24x 1GB PoE+ RJ-45 ports, this switch provides power and connectivity to numerous devices simultaneously.

With its robust PoE budget of up to 370W, it can effortlessly handle power-hungry devices like IP cameras or access points without compromising performance. The switching capacity of 128 Gbps ensures smooth data transmission throughout the network, while the forwarding rate of 95.24Mpps guarantees speedy packet delivery.

Thanks to its generous MAC Address Table Size, which supports up to 16,000 entries, managing large-scale networks becomes effortless. This unclaimed switch's flexibility is enhanced by four built-in SFP+ slots dedicated to high-speed connections over fiber cables.

Cisco Meraki MS225-24P-HW: 24x Gigabit PoE ports Switch with 4x SFP+ Uplinks and 370W PoE.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45 (802.3af/802.3at)
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x RJ-45 Management
  • Stacking Ports : 2x Stacking Connectors with up to 80 Gbps of bandwidth (Stacking-compatible with the MS210) - support for up to 8 stack members for built-in redundancy and performance - Stacking Cables are not included
  • Virtual Stacking : Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
  • Stacking Cable Options : MA-CBL-40G-50CM, MA-CBL-40G-1M, MA-CBL-40G-3M
  • Switch Version : Unclaimed (UC) - Licences can be purchased directly from Meraki
  • Power Supplies Included : 1x Internal AC Power Supply - 1x RPS Slot (PWR-RPS2300 - Remote Power System (RPS) Chassis - not included)
  • PoE Budget : 370W - Up to 24 devices PoE 802.3af (15.4W per port) - 12 devices PoE+ 802.3at (30W per port)
  • Switching Capacity : 128 Gbps
  • Forwarding Rate : 95.24 Mpps
  • MAC Address Table Size : 16,000
  • Model Number : MS225-24P-HW
  • Part Number : MS225-24P-HW, MS225-24P-HW=, MS225-24P-HW-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco Meraki MS225-24P-HW 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Unclaimed Switch as described above
  • One (1) Power Cord Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Licenses are sold directly by Meraki
