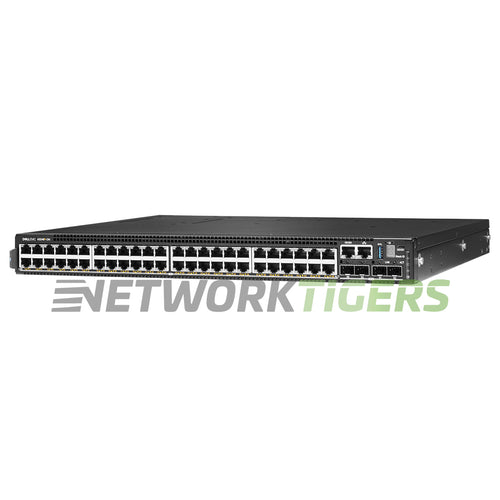

Dell N3248P-ON 48x 1GB PoE RJ45 4x 10GB SFP+ 2x 100GB QSFP28 F-B OS6 Switch

Dell N3248P-ON 48x 1GB PoE RJ45 4x 10GB SFP+ 2x 100GB QSFP28 F-B OS6 Switch

$ 3,314.99
$ 3,249.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-9280

Overview

The Dell N3248P-ON switch is designed for high-performance networking environments. With 48x PoE RJ45 ports and 4x 10GB SFP+ uplink ports, it offers a total switching capacity of 576Gbps and a forwarding rate of 800 Mpps. The switch also features 2x QSFP28 ports for ultra-high-speed connectivity.

Capable of handling large amounts of data traffic efficiently, the Dell N3248P-ON has a MAC address table size that can accommodate up to 32,000 entries. This makes it ideal for medium-sized enterprise networks where reliability and performance are critical factors in network operations.

Dell N3248P-ON: IO/PS Airflow, with OS6: 48x RJ45 10/100/1000Mb 802.3at (up to 30W) PoE autosensing ports; 4x 10G SFP+ ports, 2X 100G QSFP28 ports, 1x 1050W AC PSU included. OS6.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE RJ45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+, 2x 100 Gigabit Ethernet QSFP28 (Stacking)
  • Management Ports : 1x USB, 1x Mini USB,
  • Stacking Ports : 400Gbps stacking bandwidth using two 100GB QSFP28 integrated rear stacking ports
  • Firmware Version : OS6
  • Fan Modules AirFlow Direction : 3x Fans Included - Normal Airflow - IO to PSU - Front-to-Back Airflow (Normal)
  • Power Supplies Included : 2x PSU Slots - 1x 1050W AC Hot Swap Power Supply Included
  • PoE Budget : 802.3at
  • Switching Capacity : 576Gbps
  • Forwarding Rate : 800 Mpps
  • MAC Address Table Size : 32,000
  • Rack Mounts : Not Included - Ready Rails ordered separately.
  • Model Number : N3248P-ON
  • Part Number : N3248P-ON
  • Condition : Seller refurbished

Datasheet

More information on this Dell N3248P-ON.

Included

  • One (1) Seller refurbished Dell N3248P-ON 48x 1GB PoE RJ45 4x 10GB SFP+ 2x 100GB QSFP28 F-B OS6 Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Three (3) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
