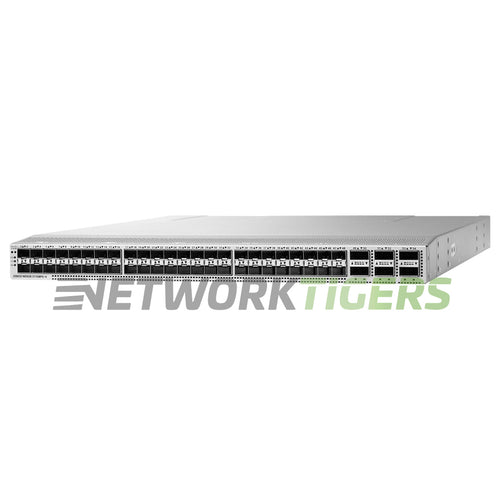

The Cisco N9K-C93180YC-EX is a 1RU Nexus 9300-EX leaf switch for 10GB and 25GB server access. Its 48 SFP28 ports can be set per port to 1GB, 10GB or 25GB, and six 40/100GB QSFP28 uplinks connect it to the spine. Cisco states latency of less than 1 microsecond.
Cisco rates it at 3.6 Tbps of bandwidth and over 2.6 Bpps, with a 40 MB buffer, 256,000 MAC address entries, a 4-core CPU, 24 GB of system memory and a 64 GB SSD. There are two power supply bays and four fan bays, and every fan and power supply must share one airflow direction.
This listing is the front-to-back (port-side intake) build, using NXA-FAN-30CFM-B fans and NXA-PAC-650W-PI power supplies, so the port side faces the cold aisle.
It ships with two AC power supplies, two power cords and four fan modules. Transceivers and rack mount brackets are not included.
If your rack runs the other way, the N9K-C93180YC-EX back-to-front switch has the opposite airflow. Spare or redundant power is available as the NXA-PAC-650W-PI 650W AC power supply.
This seller refurbished Cisco Nexus 9300-EX 25GB switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1/10/25GB SFP28
- Uplink Ports : 6x 40/100GB QSFP28
- Management Ports : 1x RJ45 Management, 1x SFP Management, 1x USB Type A, 1x Serial (RS-232)
- AirFlow Direction : Front-to-back (port-side intake)
- Fan Module Options : NXA-FAN-30CFM-B (port-side intake) or NXA-FAN-30CFM-F (port-side exhaust), 4 fan bays
- Power Supplies Included : 2x NXA-PAC-650W-PI (2 power supply bays)
- Power Supply Options : NXA-PAC-650W-PI, NXA-PAC-650W-PE, NXA-PAC-500W-PI, NXA-PAC-500W-PE, NXA-PDC-930W-PI, NXA-PDC-930W-PE, N9K-PUV-1200W
- Switching Capacity : 3.6 Tbps
- Forwarding Rate : 2.6 Bpps
- MAC Address Table Size : 256,000
- Latency : less than 1 microsecond
- DRAM and Flash : 24 GB system memory, 64 GB SSD
- Model Number : N9K-C93180YC-EX
- Part Number : N9K-C93180YC-EX, N9K-C93180YC-EX=, N9K-C93180YC-EX-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco N9K-C93180YC-EX 48x 25GB SFP28 6x 100GB QSFP28 Front-to-Back Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Rack Mount Brackets/Rails Not Included
