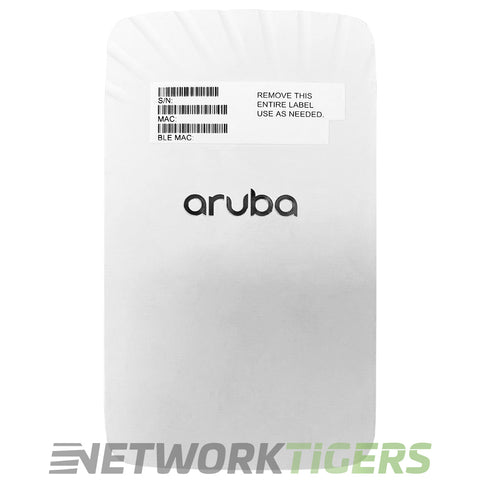

The HPE Aruba R3V48A AP-505H (US) Dual-Radio 802.11ax WiFi 6 WAP is equipped with two internal semi-directional antennas that offer peak single antenna gain of 5.2dBi in the 2.4GHz frequency and 5.4dBi in the 5GHz frequency band, ensuring reliable connectivity for users on both spectrums within US regulatory domain limits.
This device's dual-radio design and support for WiFi ax technology make it a high-performing option for businesses seeking efficient wireless network solutions while adhering to industry standards.
HPE Aruba R3V48A: AP-505H (US) Dual-radio 802.11ax 2x2 Unified Hospitality AP with 1+4 Ethernet, PSE, USB.
- Wi-Fi Standard : 802.11ax (Wi-Fi 6)
- Managed By : Aruba Central, Mobility Controller, or standalone
- Licensing : High-end hospitality, branch, and teleworker deployments
- Region : US
- Radios : Dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO
- Spatial Streams per Radio : 2 (2SS) on both bands
- Maximum Data Rate : Up to 1.5 Gbps wireless aggregate, 1.2 Gbps (5GHz HE80) and 287 Mbps (2.4GHz HE20) per radio
- Bluetooth / IoT Radios : Bluetooth 5 (BLE5.0) and Zigbee (802.15.4), integrated semi-directional antenna, peak gain 1.2 dBi
- PoE Standard : 802.3af/at/bt (class 3, 4, or 6) on uplink port E0
- DC Power Input : 48Vdc (nominal, +/- 5%), 1.35mm/3.5mm center-positive circular plug
- Uplink Ports : 1x 2.5 Gigabit Ethernet PoE RJ45
- Other Ports : 4x 1 Gigabit Ethernet RJ-45, USB 2.0 host (Type A, up to 1A/5W), serial console (proprietary micro-B USB)
- Antenna Type : Integrated, semi-directional
- Mounting Options : Sold Separately - R3V58A (Single-gang Wall-box), R3V59A (Dual-gang Wall-box, AP-505H), R3V61A (Dual-gang Wall-box, AP-503H), R3V60A (Desk Mount)
- Mounts Included : None - Using one of the (separate orderable) mount kits, the AP can be attached to a single or dual gang wall-box, directly to a wall, or desk mounted
- Model Number : R3V48A
- Part Number : R3V48A, AP-505H, AP-505H-US, AP-505H US, APINH505
- Condition : New

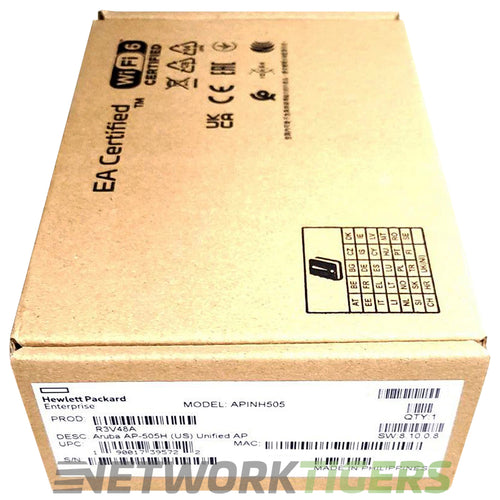

- One (1) NEW HPE Aruba AP-505H R3V48A US Wi-Fi 6 802.11ax Internal Ant Hospitality WAP as described above
