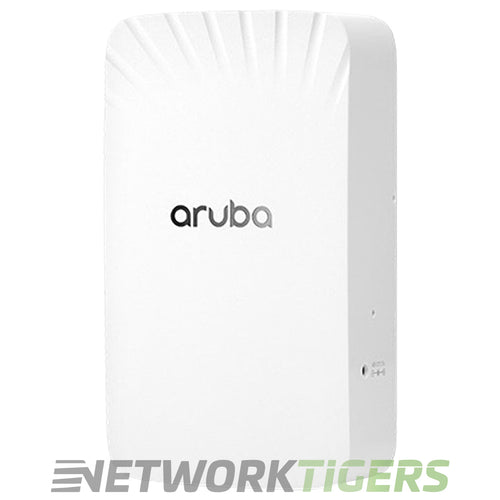

The HPE Aruba R3V49A AP-505H (US) is a dual-radio WiFi 6 access point designed for the US regulatory domain, operating on 2.4 and 5 GHz frequencies. It supports 2x2 MIMO for efficient wireless performance.
Integrated semi-directional antennas provide peak single antenna gains of 5.2 dBi in the 2.4 GHz band and 5.4 dBi in the 5 GHz band, enhancing signal coverage within designated areas. This unit follows TAA compliance requirements, making it suitable for specific government or regulated deployments where compliance with trade regulations matters most.
This model supports modern connectivity demands and offers reliable radio output, ensuring improved efficiency across connected devices using WiFi traffic management capabilities.
HPE Aruba R3V49A AP-505H (US) Dual-Radio 802.11ax WiFi 6 2x2 MIMO (TAA) WAP
- Wi-Fi Standard : 802.11ax (Wi-Fi 6)
- Managed By : Aruba Central, Mobility Controller, or standalone
- TAA : Yes
- Suggested Use : High-end hospitality, branch, and teleworker deployments
- Region : US TAA
- Radios : Dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO
- Spatial Streams per Radio : 2 (2SS) on both bands
- Maximum Data Rate : Up to 1.5 Gbps wireless aggregate, 1.2 Gbps (5GHz HE80) and 287 Mbps (2.4GHz HE20) per radio
- Bluetooth / IoT Radios : Bluetooth 5 (BLE5.0) and Zigbee (802.15.4), integrated semi-directional antenna, peak gain 1.2 dBi
- PoE Standard : 802.3af/at/bt (class 3, 4, or 6) on uplink port E0
- DC Power Input : 48Vdc (nominal, +/- 5%), 1.35mm/3.5mm center-positive circular plug
- Uplink Ports : 1x 2.5 Gigabit Ethernet PoE RJ45
- Other Ports : 4x 1 Gigabit Ethernet RJ-45, USB 2.0 host (Type A, up to 1A/5W), serial console (proprietary micro-B USB)
- Antenna Type : Integrated, semi-directional
- Mounting Options : Sold Separately - R3V58A (Single-gang Wall-box), R3V59A (Dual-gang Wall-box, AP-505H), R3V61A (Dual-gang Wall-box, AP-503H), R3V60A (Desk Mount)
- Mounts Included : None - Using one of the (separate orderable) mount kits, the AP can be attached to a single or dual gang wall-box, directly to a wall, or desk mounted
- Model Number : R3V49A
- Part Number : R3V49A, AP-505H, AP-505H-TAA, APINH505
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-505H R3V49A US TAA Wi-Fi 6 802.11ax Internal Ant Hospitality WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Power Adapter Not Included
