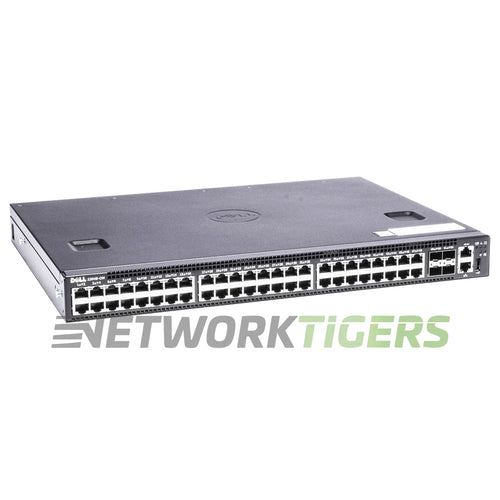

The Dell S3048-ON is a 1RU access switch with 48x 1GB RJ45 ports and 4x 10GB SFP+ ports. It suits campus closets and server-room management networks where many copper devices connect at gigabit speed and a few fiber links run upstream.
Dell rates it at 260 Gbps of switching capacity and 131 Mpps, with a 4 MB packet buffer and a MAC table of up to 80K entries. Each of the four SFP+ ports can serve as an uplink or a stacking port, and up to six units can be stacked. The chassis has two power supply bays and three hot-swappable fan modules, matched to the airflow direction. This is the standard-airflow version: air moves from the I/O panel to the power supplies (front-to-back, port-side intake), so the ports face the cold aisle.
This listing is seller refurbished and tested and ships with one AC power supply, three fan modules and one power cord, as recorded for this unit. Transceivers are not included.
If your rack needs the opposite airflow, the S3048-ON-RA listing is the back-to-front version. The same model is also available new open box. This seller refurbished Dell S3048-ON switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet RJ45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 1x RJ45 Console/Management port with RS232 signaling
- Stacking Ports : 2x Stacking ports
- Stacking Cable Options : WYDVP - 0.25m, GG661 - 1m, N7T3J - 3m - Not Included
- Switch Version : OS9
- AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow)
- Fan Module Options : 3x Fan Modules
- Power Supplies Included : 1x PSU Included - 2x Total Slots
- Alternative Dell Part Numbers : XF0X9, 210-AHCE
- Switching Capacity : 260Gbps (full-duplex), 130 Gbps (half-duplex)
- Forwarding Rate : 131 Mpps
- MAC Address Table Size : 80,000
- Latency : 3.7 μsec
- Model Number : S3048-ON
- Part Number : S3048-ON, XF0X9, 210-AHCE
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell S3048-ON 48x 1GB RJ45 4x 10GB SFP+ Front-to-Back Airflow 210-AEDM Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
