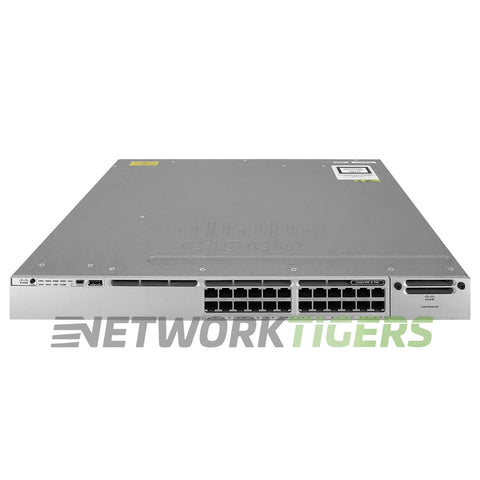

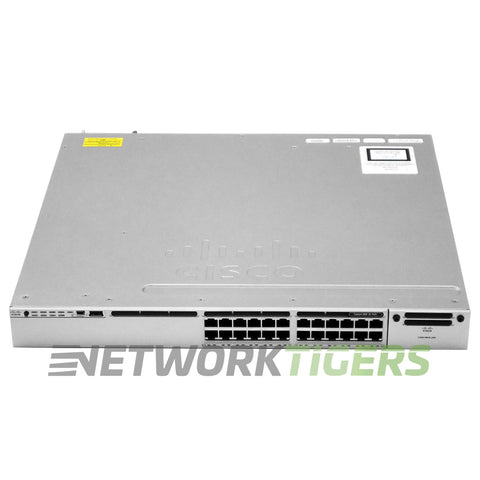

The Cisco WS-C3850-24P-S is a stackable 1RU Catalyst 3850 switch with 24 10/100/1000 RJ45 ports, every one with PoE+ for IP phones, cameras and wireless access points. The -S suffix marks the IP Base feature set in Cisco's ordering list, covering static, RIP and EIGRP stub routing, plus OSPF for routed access.
With its 715W AC supply Cisco lists 435W of available PoE power for the 24-port PoE+ model. Switching capacity is 92 Gbps with 68.4 Mpps forwarding. The front network module slot takes the C3850-NM-4-1G or the C3850-NM-2-10G for fiber uplinks. StackWise-480 stacks up to nine switches at 480 Gbps, and StackPower shares power across up to four.

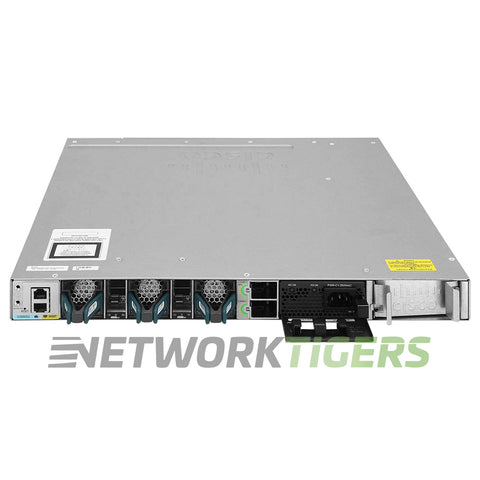

This unit is new open box and ships as Cisco configures it: one PWR-C1-715WAC in one of two power supply bays and three field-replaceable fan modules. No network module or transceivers are included.
For data-only ports, the NEW Cisco WS-C3850-24T-S skips PoE and uses a 350W supply. Uplink choices include the NEW C3850-NM-2-10G 1/10GB SFP module and the NEW C3850-NM-4-1G 1GB SFP module. For a different feature set, see the NEW Cisco WS-C3850-24P-L LAN Base version or the NEW Cisco WS-C3850-24P-E IP Services version. A seller refurbished Cisco WS-C3850-24P-S is also listed.
This switch is new open box and covered by the NetworkTigers one-year warranty.
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : Through the use Expansion Module - See "Module Slots and Options"
- Management Ports : 1x USB Type A, 1x Console Mini-USB, 1x RS-232 RJ45, 1x Gigabit Ethernet Management
- Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors - Cables sold separately
- Stacking Options : Stacking bandwidth is 480 Gbps
- Stacking Cable Options : CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise)
- Module Slots : 1x Expansion Module Slots - Modules are not included
- Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+)
- Switch Version : IP Base Version
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T1 (3 fan bays)
- Power Supplies Included : 1x PWR-C1-715WAC (2 power supply bays)
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC, PWR-C1-440WDC
- PoE Budget : 435W (with 1x 715WAC Power)
- Switching Capacity : 92 Gbps
- Forwarding Rate : 68.4 Mpps
- MAC Address Table Size : 32,000
- Model Number : WS-C3850-24P-S
- Part Number : WS-C3850-24P-S, WS-C3850-24P-S=, WS-C3850-24P-S-WS
- Condition : New
- One (1) NEW Cisco WS-C3850-24P-S 24x 1GB PoE+ RJ45 1x Module Slot Switch as described above
