NEW Cisco WS-C3850-24U-S 24x 1GB UPoE RJ-45 1x Module Slot Switch
New

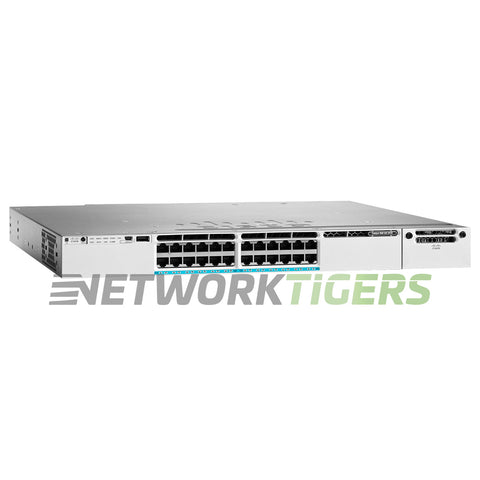

NEW Cisco WS-C3850-24U-S 24x 1GB UPoE RJ-45 1x Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1778
UPC: 882658547973

Overview

The Cisco WS-C3850-24U-S switch is a powerful and reliable networking solution designed for demanding environments. With 24 UPoE (Universal Power over Ethernet) RJ-45 ports, it provides high-speed connectivity and power to devices such as IP phones, wireless access points, and surveillance cameras.

This switch features one module slot, allowing you to expand its capabilities by adding additional modules. The PoE budget of 800W ensures sufficient power supply to all connected devices without compromising performance.

With a switching capacity of 92 Gbps, this Cisco switch offers fast data transfer rates even in bandwidth-intensive applications. Its MAC address table size of 32,000 enables efficient handling of network traffic.

Cisco Catalyst WS-C3850-24U-S: Stackable 24x 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet UPoE RJ-45
  • Uplink Ports : Through the use Expansion Module - See "Module Slots and Options"
  • Management Ports : 1x USB Type A, 1x Console MIni USB Type B, 1x RS-232 RJ-45 Management, 1x Gigabit Ethernet Management
  • Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors - Cables sold separately - CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise) | Stacking bandwidth is 480 Gbps
  • Module Slots and Options : 1x Expansion Module Slots - Modules are not included
  • Expansion Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+)
  • Fan Modules AirFlow Direction : 3x C3850-FAN-T1 Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-1100WAC - 1100W AC Power Supply Included - 2x Slots (Dual Capable) - 2nd Power Supply Sold Separately - Options are - PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC - DC Power available using PWR-C1-440WDC.
  • PoE Budget : 800W
  • Switching Capacity : 92 Gbps
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • Model Number : WS-C3850-24U-S
  • Part Number : WS-C3850-24U-S, WS-C3850-24U-S=, WS-C3850-24U-S-WS
  • Condition : New


Included

  • One (1) NEW Cisco WS-C3850-24U-S 24x 1GB UPoE RJ-45 1x Module Slot Switch as described above
