NEW Cisco WS-C4500X-16SFP+ 16x 10GB SFP+ Front-to-Back Airflow IP Base Switch

$ 499.99
$ 254.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1758 ASK FOR QUOTE
UPC: 882658485404

Overview

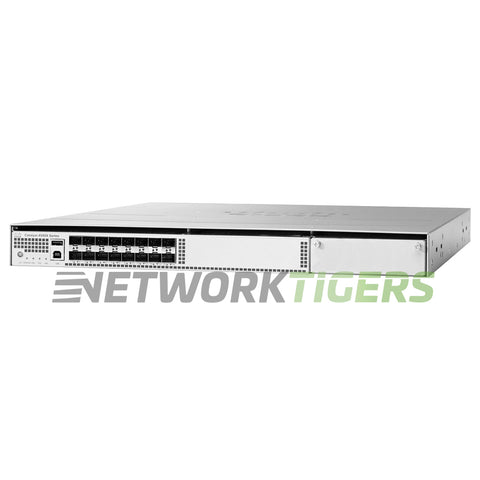

The Cisco WS-C4500X-16SFP+ is a 1RU Catalyst 4500-X aggregation switch with 16 fixed SFP+/SFP ports that run at 10GB or 1GB, plus one front-panel bay for the optional C4KX-NM-8SFP+ eight-port network module. It fits the campus distribution or aggregation layer, and two units can run as one logical switch through Virtual Switching System (VSS), up to 1.6 Tbps.

Cisco rates the platform at up to 800 Gbps of switching capacity and 245 Mpps with 55K MAC entries and a 32 MB shared port buffer. The 16-port base system holds 64K IPv4 and 32K IPv6 forwarding entries. Airflow is front-to-back (port-side intake): air enters at the ports and exits past the rear power supplies, so the ports face the cold aisle. Cisco lists C4KX-FAN-R fans and C4KX-PWR-750AC-R or C4KX-PWR-750DC-R power supplies for front-to-back (port-side intake) cooling on this model.

This listing is a new open box switch. Cisco's ordering table lists this part number with no power supply, and the two rear bays take C4KX-PWR-750AC-R (AC) or C4KX-PWR-750DC-R (DC) units; the network module and transceivers are separate purchases. Cisco's standard mount is a 19-inch 2-post kit, with a 4-post rear-only kit (C4948E-BKT-KIT) as the alternative; buyers often forget to choose the mount.

For a lower-cost option, a seller refurbished unit of this model is listed. Add the new C4KX-PWR-750AC-R 750W AC power supply for power, and the new C4KX-NM-8SFP+ module for eight more 10GB ports. This Cisco WS-C4500X-16SFP+ switch is new open box and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 16x 10GB SFP+/SFP
  • Management Ports : 1x RJ45 console, 1x 10/100/1000 RJ45 management, 1x USB Type A, 1x SD card slot
  • Module Slots : 1x network module slot, none included
  • Module Options : C4KX-NM-8SFP+
  • Switch Version : IP Base Version
  • AirFlow Direction : Front-to-back (port-side intake)
  • Fan Module Options : 5x C4KX-FAN-R included (5 fan bays)
  • Power Supplies Included : 1x C4KX-PWR-750AC-R Power Supply included - Front-to-Back Airflow - Dual Capable - Second Power Supply purchased separately.
  • Power Supply Options : C4KX-PWR-750AC-R, C4KX-PWR-750DC-R
  • Switching Capacity : 800 Gbps
  • Forwarding Rate : 245 Mpps
  • MAC Address Table Size : 55,000
  • DRAM and Flash : 4 GB onboard memory (SRAM DDR-II), 2 GB NVRAM
  • Model Number : WS-C4500X-16SFP+
  • Part Number : WS-C4500X-16SFP+, WS-C4500X-16SFP+=, WS-C4500X-16SFP+-WS
  • Condition : New


Included

  • One (1) NEW Cisco WS-C4500X-16SFP+ 16x 10GB SFP+ Front-to-Back Airflow IP Base Switch as described above
