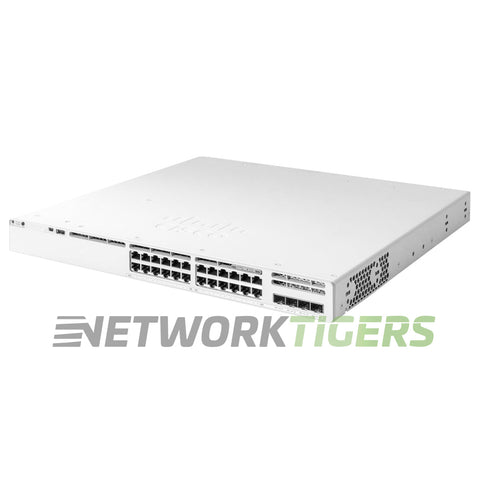

A NEW Cisco Catalyst C9300L-24T-4G-E (Network Essentials version), supplied in open box, gives closets 24 Gigabit data ports and four fixed 1G uplinks, and it stacks with up to seven others through the optional kit.
- 192 data ports in one stack: Eight switches share 320 Gbps for 192 Gigabit ports. Stacked switching capacity reaches 376 Gbps, with 279.76 Mpps of forwarding.
- Asset tag and beacon: An embedded RFID tag supports inventory scans, and a blue beacon LED picks the unit out of a crowded rack.
- Data-only on 1000BASE-T: All 24 ports run 1000BASE-T over Cat 5E cabling. No PoE is offered, and the default supply is the 350W PWR-C1-350WAC-P.
- Four SFP uplinks at 1G: The built-in uplinks take LC fiber SFPs, and 1000BASE-T SFPs bring copper links to any of them.
Compare: Want 10G uplinks? The NEW C9300L-24T-4X-E has four 10G/1G SFP+ uplinks. Need a module slot? The NEW C9300-24T-E takes Catalyst 9300 network modules.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
This unit is NEW in open box and sold with warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 24x 1 Gigabit Ethernet RJ45
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 2x USB, 1x Mini USB
- Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
- Stacking Options : Only other C9300L SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Modules Included
- Power Supplies Included : 1x PWR-C1-350WAC-P Included - 2nd Power Supply ordered separately.
- PoE Budget : N/A
- Switching Capacity : 56 Gbps (Switching Capacity with Stacking - 376 Gbps)
- Forwarding Rate : 41.66 Mpps (Forwarding Rate with Stacking - 279.76 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-24T-4G-E
- Part Number : C9300L-24T-4G-E, C9300L-24T-4G-E=, C9300L-24T-4G-E-WS
- Condition : New
- One (1) NEW Cisco C9300L-24T-4G-E Catalyst 9300L 24x 1GB RJ45 4x 1GB SFP Switch as described above
