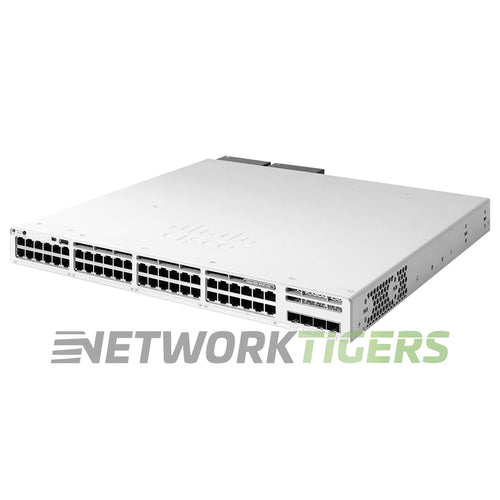

This seller refurbished Cisco Catalyst C9300L-48PF-4X-E (Network Essentials version) is a stackable 48-port Gigabit PoE+ access switch with four fixed 10G/1G SFP+ uplinks, for floors in offices and schools that need hundreds of powered ports.
- 384 powered ports in a stack: Eight switches joined with the optional kit give 384 PoE+ ports. Stacked switching capacity reaches 496 Gbps, with 369.05 Mpps of forwarding.
- Inventory tag and chassis data: An embedded RFID tag and a blue beacon LED aid inventory. The chassis weighs 15.48 lb (7.03 kg), and its MTBF is 298,880 hours.
- Default supply and depth: The default PWR-C1-1100WAC-P is rated 1100W, and the chassis is 19.2 in deep with it fitted.
- Fixed 10G uplinks: The four SFP+ uplinks are built in at 10G/1G. For 1G only, the C9300L-48PF-4G is the matching model.
Compare: Want slower built-in uplinks? The C9300L-48PF-4G-E has four 1G SFP uplinks. Need a module slot? The C9300-48P-E takes Catalyst 9300 network modules.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 48x Gigabit Ethernet Full PoE+ RJ45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 2x USB, 1x Mini USB
- Stacking Ports : StackWise-320 (Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
- Stacking Options : Supported Stack Members - Other C9300L SKUs with same license level (Number of Members - 8)
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK T3-3M - none included
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P Included - 2x Slots - 2nd Power Supply ordered separately.
- PoE Budget : 890W
- Switching Capacity : 176 Gbps (Switching Capacity with Stacking - 496 Gbps)
- Forwarding Rate : 130.95 Mpps (Forwarding Rate with Stacking - 369.05 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-48PF-4X-E
- Part Number : C9300L-48PF-4X-E, C9300L-48PF-4X-E=, C9300L-48PF-4X-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300L-48PF-4X-E 48x 1GB Full PoE+ RJ45 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
