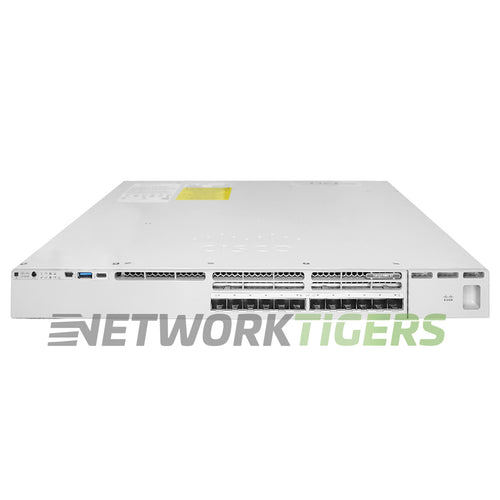

This seller refurbished Cisco Catalyst C9300X-12Y-A (Network Advantage version) is a 12-port 25G/10G/1G SFP28 access switch with a modular uplink slot, built for fiber-fed closets and aggregation points that need high-speed ports in a 1RU chassis.
- No PoE, Platinum-rated supply: This model has no PoE. Its default PWR-C1-715WAC-P is a Platinum-rated 715W supply, and the chassis is 17.6 in deep with it fitted.
- Network modules up to 100G: The slot takes C9300X-NM-8M (8x 10G/1G Multigigabit), C9300X-NM-8Y (8x 25G/10G/1G), or C9300X-NM-2C (2x 100G/40G) modules.
- StackWise-1T with StackPower: Up to eight switches stack at 1 Tbps, and StackPower pools supplies across up to four of them, or eight with an XPS-2200.
- Fans and supply bays: Two power supply bays take a second supply, and the three fans (FAN-T2, N+1) are field-replaceable.
Compare: Need more fiber ports? The C9300X-24Y-A has 24 SFP28 ports. Need to power endpoints? The C9300X-24HX-A delivers Cisco UPOE+ at up to 90W per port.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 12x 25 Gigabit Ethernet SFP28 (25G/10G/1G)
- Management Ports : 1x USB 2.0, 1x RJ45 Management
- Stacking Ports : 2x StackWise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and 9300 models | Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - Modules Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake)
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x 715W AC PSU Included (PWR-C1-715WAC) - 2x Slots - 2nd PSU ordered separately
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P
- PoE Budget : No PoE
- Switching Capacity : 1,400 Gbps (2,400 Gbps w/ Stacking)
- Forwarding Rate : 1041 Mpps (1785 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300X-12Y-A
- Part Number : C9300X-12Y-A
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300X-12Y-A Catalyst 9300X 12x 25GB SFP28 1x Expansion Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
