Arista DCS-7050S-64-F 48x 10GB SFP+ 4x 40GB QSFP+ F-B Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-5256

Overview

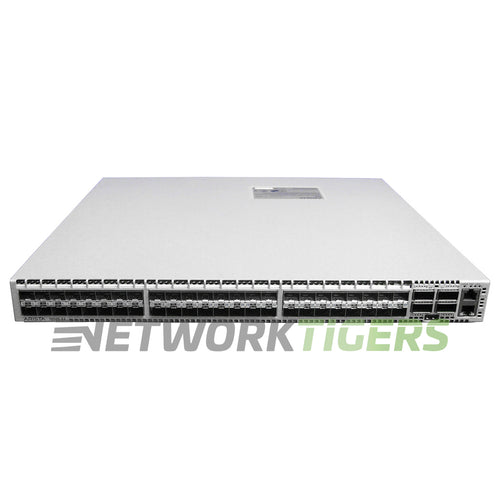

The DCS-7050S-64-F is a 1RU top-of-rack switch from the original 7050 series. It has 48 SFP+ ports at 1GbE or 10GbE and four 40GbE QSFP+ uplinks. Each QSFP+ port breaks out to four 10GbE links, for up to 64 10GbE ports.

Capacity is 1.28 Tbps at 960 Mpps. Arista lists latency of 800 to 1150 nanoseconds on SFP+ and 950 to 1350 nanoseconds on QSFP+, with a 9 MB shared buffer. Memory is 4 GB of DRAM and 2 GB of flash; a separate variant added a 50 GB SSD.

This unit is front-to-back (port-side intake). Arista also sells the opposite airflow version (-R), so match it to the rack. Two 460W AC power supplies run 1+1 hot-swap, with PWR-460AC-F and PWR-460DC-F as spares. Cooling is four hot-swap FAN-7000-F fans in N+1. Keep fans and supplies on the same airflow direction. Typical and maximum draw are 125W and 220W. The switch is 19 x 16 x 1.75 inches and weighs 17 lb.

Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.

Arista also sells the DCS-7050S-64-R with the opposite airflow. A new DCS-7050S-64-F is also available. Matching spares include the PWR-460AC-F power supply and the FAN-7000-F fan module.

This seller refurbished DCS-7050S-64-F is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 48x 1/10GbE SFP+, 4x 40GbE QSFP+
  • Uplink Ports : 4x 40GbE QSFP+
  • Management Ports : 1x 100/1000 Ethernet, 1x RS-232 console (RJ-45), 1x USB
  • CPU : Dual-core x86
  • VLAN ID's : 4096
  • Packet Buffer : 9MB
  • AirFlow Direction : Front-to-back (port-side intake)
  • Fan Module Options : FAN-7000-F
  • Power Supplies Included : 2x 460W AC, 1+1 hot-swap
  • Power Supply Options : PWR-460AC-F, PWR-460DC-F
  • PoE Budget : None
  • Switching Capacity : 1.28 Tbps
  • Forwarding Rate : 960 Mpps
  • MAC Address Table Size : 128,000
  • Latency : 800 to 1150 ns SFP+, 950 to 1350 ns QSFP+
  • DRAM and Flash : 4 GB DRAM, 2 GB flash
  • Model Number : DCS-7050S-64-F
  • Part Number : DCS-7050S-64-F
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista DCS-7050S-64-F 48x 10GB SFP+ 4x 40GB QSFP+ Front-to-Back Airflow Switch as described above
  • One (1) Power Cord Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Rack Mount Rails Not Included
