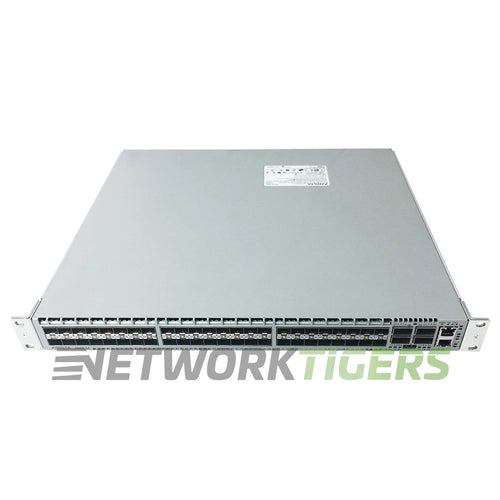

The Arista DCS-7050S-64-R is a 1RU top-of-rack switch from the original 7050 series with 48 SFP+ ports at 1GB or 10GB and 4 QSFP+ uplinks at 40GB. Each QSFP+ port can also run as four independent 10GB ports, for up to 64 10GB ports in total.
Arista rates it at 1.28 Tbps and 960 Mpps. Latency is 800 to 1150 ns on the SFP+ ports and 950 to 1350 ns on the QSFP+ ports, and a 9MB shared buffer uses Dynamic Buffer Allocation. The MAC table holds 128,000 entries, and a dual-core x86 CPU with 4GB of DRAM and 2GB of flash runs EOS.
This is the -R version with back-to-front (port-side exhaust) airflow, so the port side faces the hot aisle. Its four FAN-7000-R fans run N+1 and its two PWR-460AC-R power supplies run 1+1; spares should match this airflow. BGP and OSPF need the Arista Enhanced L3 license (LIC-FIX-2-E), sold separately.
This listing ships with two AC power supplies, four fan modules, one power cord and a set of rack mount brackets, as shown in Item Includes. Arista switches from NetworkTigers ship with 2-post rack ears only, and 4-post rails are quoted separately.
Need port-side intake instead? The DCS-7050S-64-F front-to-back version is the same switch with the opposite airflow. A new open box DCS-7050S-64-R is also listed, and a spare PWR-460AC-R power supply matches this airflow.
This seller refurbished Arista DCS-7050S-64-R switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1GB/10GB SFP+, 4x 40GB QSFP+
- Uplink Ports : 4x 40GB QSFP+
- Management Ports : 1x 100/1000 Ethernet, 1x RS-232 console (RJ45), 1x USB
- CPU : Dual-core x86
- VLAN ID's : 4096
- Packet Buffer : 9MB
- AirFlow Direction : Back-to-front (port-side exhaust)
- Fan Module Options : FAN-7000-R
- Power Supplies Included : 2x PWR-460AC-R (2 power supply bays)
- Power Supply Options : PWR-460AC-R, PWR-460DC-R
- PoE Budget : None
- Switching Capacity : 1.28 Tbps
- Forwarding Rate : 960 Mpps
- MAC Address Table Size : 128,000
- Latency : 800 to 1150 ns SFP+, 950 to 1350 ns QSFP+
- DRAM and Flash : 4 GB DRAM, 2 GB flash
- Model Number : DCS-7050S-64-R
- Part Number : DCS-7050S-64-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7050S-64-R 7050S Series 48x 10GB SFP+ 4x 40GB QSFP+ Back-to-Front Airflow Switch as described above
- One (1) Power Cord Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
