NEW Arista DCS-7050SX2-128-F 96x 10GB SFP+ 8x 40GB QSFP+ F-B Airflow Switch

$ 1,224.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2437 ASK FOR QUOTE

Overview

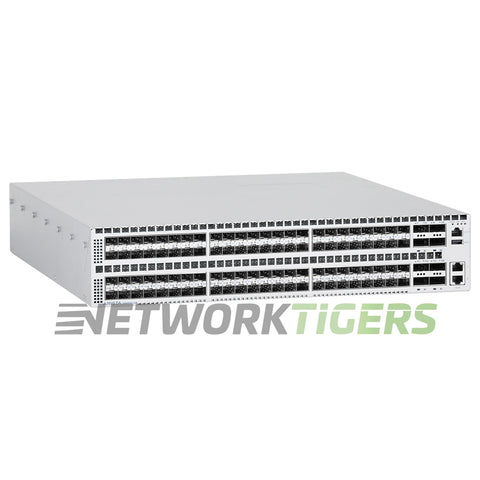

The DCS-7050SX2-128-F is a 2RU 7050X switch for dense 10GbE fiber access, with 96 SFP+ ports at 1GbE or 10GbE and eight 40GbE QSFP+ uplinks.

Capacity is 2.56 Tbps at 1440 Mpps with 550 nanoseconds of latency and a 16 MB buffer. It has 8 GB of DRAM and 4 GB of flash; there is no SSD option. Two 10/100/1000 management ports, an RJ-45 RS-232 console, and a USB port handle out-of-band access.

This unit is front-to-back (port-side intake). Arista also sells the opposite airflow version (-R), so match it to the rack. Two AC supplies run 1+1 hot-swap, and the supported spare is PWR-500AC-F; no DC supply is listed for this model. Four hot-swap FAN-7002-F fans run N+1. Keep fans and supplies on the same airflow. Typical and maximum draw are 214W and 396W. The chassis measures 19 x 18.1 x 3.5 inches and weighs 33 lb.

Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.

Arista also sells the DCS-7050SX2-128-R with the opposite airflow. A seller refurbished DCS-7050SX2-128-F is also available. Matching spares include the PWR-500AC-F power supply and the FAN-7002-F fan module.

This DCS-7050SX2-128-F is new and covered by the NetworkTigers one-year warranty. The original packaging may have been opened to inspect the contents.


Specifications

  • Network Ports : 96x 1/10GbE SFP+, 8x 40GbE QSFP+
  • Uplink Ports : 8x 40GbE QSFP+
  • Management Ports : 2x 10/100/1000 Ethernet, 1x RS-232 console (RJ-45), 1x USB
  • CPU : Quad-Core x86
  • VLAN ID's : 4096
  • Packet Buffer : 16MB
  • AirFlow Direction : Front-to-back (port-side intake)
  • Fan Module Options : FAN-7002-F
  • Power Supplies Included : 2x AC, 1+1 hot-swap
  • Power Supply Options : PWR-500AC-F
  • PoE Budget : None
  • Switching Capacity : 2.56 Tbps
  • Forwarding Rate : 1440 Mpps
  • MAC Address Table Size : 288,000
  • Latency : 550 ns
  • DRAM and Flash : 8 GB DRAM, 4 GB flash
  • Model Number : DCS-7050SX2-128-F
  • Part Number : DCS-7050SX2-128-F
  • Condition : New


Included

  • One (1) NEW Arista DCS-7050SX2-128-F 96x 10GB SFP+ 8x 40GB QSFP+ F-B Airflow Switch as described above
