NEW Arista DCS-7050SX2-128-R 96x 10GB SFP+ 8x 40GB QSFP+ B-F Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2438

Overview

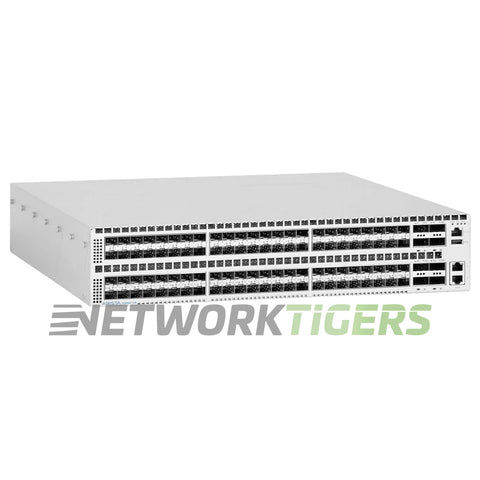

Ninety-six SFP+ ports at 1GbE or 10GbE and eight 40GbE QSFP+ uplinks fit in the 2RU chassis of the DCS-7050SX2-128-R. It suits high-count 10GbE server access.

The switch handles 2.56 Tbps and 1440 Mpps, with 550 nanoseconds of latency and a 16 MB buffer. Memory is 8 GB of DRAM and 4 GB of flash, with no SSD option. For management it offers two 10/100/1000 Ethernet ports, an RJ-45 RS-232 console, and USB.

Airflow is back-to-front (port-side exhaust). A front-to-back (-F) version is also sold, so pick the direction your rack uses. Two AC power supplies come installed in 1+1 hot-swap. PWR-500AC-R is the supported spare, and no DC supply is listed for this model. Four FAN-7002-R fans run N+1 and are hot-swap. Every fan and supply should share one airflow direction. Arista lists typical and maximum draw of 214W and 396W. It weighs 33 lb at 19 x 18.1 x 3.5 inches.

Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.

Arista also sells the DCS-7050SX2-128-F with the opposite airflow. A seller refurbished DCS-7050SX2-128-R is also available. Matching spares include the PWR-500AC-R power supply and the FAN-7002-R fan module.

This DCS-7050SX2-128-R is new and covered by the NetworkTigers one-year warranty. The original packaging may have been opened to inspect the contents.


Specifications

  • Network Ports : 96x 1/10GbE SFP+, 8x 40GbE QSFP+
  • Uplink Ports : 8x 40GbE QSFP+
  • Management Ports : 2x 10/100/1000 Ethernet, 1x RS-232 console (RJ-45), 1x USB
  • CPU : Quad-Core x86
  • VLAN ID's : 4096
  • Packet Buffer : 16MB
  • AirFlow Direction : Back-to-front (port-side exhaust)
  • Fan Module Options : FAN-7002-R
  • Power Supplies Included : 2x AC, 1+1 hot-swap
  • Power Supply Options : PWR-500AC-R
  • PoE Budget : None
  • Switching Capacity : 2.56 Tbps
  • Forwarding Rate : 1440 Mpps
  • MAC Address Table Size : 288,000
  • Latency : 550 ns
  • DRAM and Flash : 8 GB DRAM, 4 GB flash
  • Model Number : DCS-7050SX2-128-R
  • Part Number : DCS-7050SX2-128-R
  • Condition : New


Included

  • One (1) NEW Arista DCS-7050SX2-128-R 96x 10GB SFP+ 8x 40GB QSFP+ B-F Airflow Switch as described above
