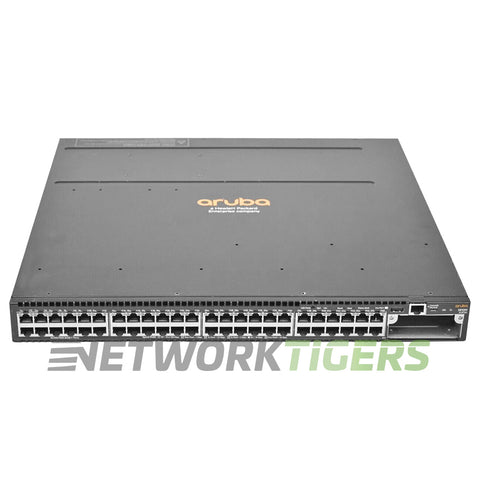

NEW HPE Aruba JL072A 3810 Series 48x 1GB RJ45 1x Expansion Module Slot Switch

NEW HPE Aruba JL072A 3810 Series 48x 1GB RJ45 1x Expansion Module Slot Switch

Ask for quote
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1718
UPC: 888793596586


The HPE Aruba JL072A 3810 Series switch is an impressive addition to any network infrastructure. With its high switching capacity of 320 Gbps and forwarding rate of 190.5 Mpps, this switch can easily handle heavy workloads.

The JL072A has an extensive MAC Address Table Size, which supports up to 64000 entries. This allows for efficient handling and management of large networks without compromising performance or speed.

The JL072A performs exceptionally well with a maximum delay of less than 2.8 uS for FIFO packets measuring at least 64 bytes in length when operating at speeds up to gigabit per second (1000mb). This ensures minimal response time during data transmission and enhances overall efficiency.

This versatile series also includes an Expansion Module Slot that offers additional flexibility and scalability depending on specific requirements or future growth plans.

Aruba JL072A: 48x Gigabit Ethernet RJ45, 1x RJ45 serial console, 1x RJ45 out-of-band management, 1x Dual-personality (RJ45 or USB micro-B), 1 x Stacking module slot - Not Included - Sold Separately, 1 x Module Slot available - Supports a maximum of 4 SFP+ ports or 2 40 GbE ports, with optional module.


  • Network Ports : 48x 1 Gigabit Ethernet RJ45
  • Product Family : Aruba 3810 Series
  • Management Ports : 1x Serial Console RJ45, 1x Out of Band Management RJ45, 1x Dual-personality (RJ45 or USB micro-B)
  • Stacking Ports : 1x Stacking Module Slot - The JL084A Stacking Module is not included - High-performance stacking provides up to 336 Gbps of stacking throughput; each 4-port stacking module can support up to 42 Gbps in each direction per stacking port
  • Module Slots and Options : 1x Expansion Module Slot - None Included - Options are - JL079A (2x 40GB QSFP+), JL078A (1x 40GB QSFP+), JL081A (4x 10GB SFP+), JL083A (4x 10GB SFP+)
  • Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m)
  • Fan Modules AirFlow Direction : 1x JL088A Aruba 3810 Switch Fan Tray Included
  • Power Supplies Included : 2x Slots (Min 1x Required) - Ordered Separately - options are - JL085A (250W AC), JL086A (680W AC), JL087A (1050W)
  • Stacking Members : Ring, chain, and mesh topologies support up to a 10-member ring or chain and 5-member fully meshed stacks; meshed topologies offer increased resiliency vs. a standard ring
  • Switching Capacity : 320 Gbps
  • Forwarding Rate : 190.5 Mpps
  • MAC Address Table Size : 64,000
  • Latency : 1000mb - < 2.8 μS (FIFO 64-byte packets)
  • Rack Mounts : Included (1-RU)
  • Model Number : JL072A
  • Part Number : JL072A
  • Condition : New


  • One (1) NEW Aruba HPE JL072A 3810 Series 48x 1GB RJ45 1x Expansion Module Slot Switch as described above
