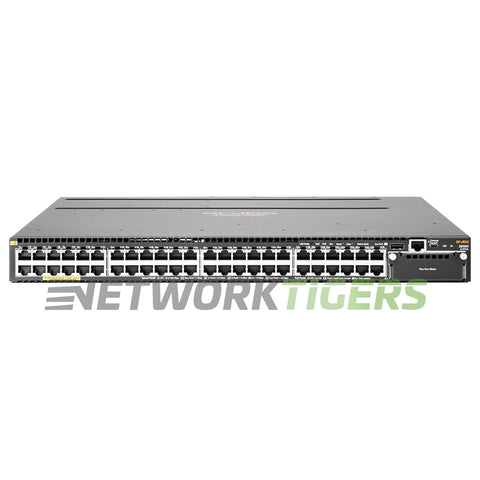

NEW HPE Aruba JL074A 48x 1GB PoE+ RJ45 1x Expansion Module Slot Switch
New

NEW HPE Aruba JL074A 48x 1GB PoE+ RJ45 1x Expansion Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3382
UPC: 888793596609

Overview

The HPE Aruba JL074A switch is designed for businesses looking to expand their network capabilities. With 48 PoE+ RJ45 ports and a maximum power budget of 1440W, this switch can support multiple devices simultaneously without sacrificing performance.

Its high switching capacity of 320 Gbps ensures fast data transfer rates, while the MAC address table size of 64,000 allows for efficient routing within the network. With a low latency rate of less than 2.8 μs and a forwarding rate of up to 190.5 Mpps, this switch can handle large amounts of traffic with minimal delay. The additional expansion module slot provides flexibility for future upgrades or connectivity options.

Aruba JL074A: 48x Gigabit Ethernet PoE+ RJ45 network ports. 1x Module slot for optional uplink. Modular power supplies are not included.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
  • Product Family : Aruba 3810 Series
  • Management Ports : 1x RJ45 Console, 1x Out-of-Band Management, 1x Dual-Personality (RJ45 or USB micro-B), 1x USB/AUX
  • Stacking Ports : 1x Stacking Module Slot - The JL084A Stacking Module is not included - High-performance stacking provides up to 336 Gbps of stacking throughput; each 4-port stacking module can support up to 42 Gbps in each direction per stacking port
  • Module Slots and Options : 1x Expansion Module Slot - None Included - Options are - JL079A (2x 40GB QSFP+), JL078A (1x 40GB QSFP+), JL081A (4x 10GB SFP+), JL083A (4x 10GB SFP+)
  • Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m)
  • Fan Modules AirFlow Direction : 1x JL088A Aruba 3810 Switch Fan Tray Included
  • Power Supplies Included : 2x Slots (Min 1x Required) - Ordered Separately - options are - JL086A (680W AC), JL087A (1050W)
  • PoE Budget : 1440W (Max)
  • Switching Capacity : 320 Gbps
  • Forwarding Rate : 190.5 Mpp
  • MAC Address Table Size : 64,000
  • Latency : < 2.8 μS (FIFO 64-byte packets) (1000MB)
  • Rack Mounts : Included (1-RU)
  • Model Number : JL074A
  • Part Number : JL074A
  • Condition : New


Included

  • One (1) NEW Aruba HPE JL074A 48x 1GB PoE+ RJ45 1x Expansion Module Slot Switch as described above
