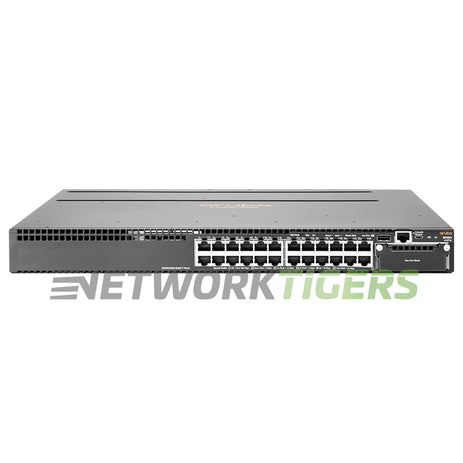

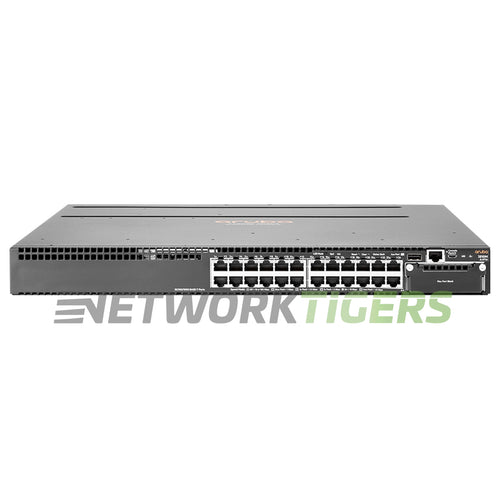

HPE Aruba JL073A 24x 1GB PoE+ RJ-45 1x Expansion Module Slot Switch

HPE Aruba JL073A 24x 1GB PoE+ RJ-45 1x Expansion Module Slot Switch

$ 1,423.99
$ 1,115.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-6414
UPC: 888793596593

Overview

The HPE Aruba JL073A switch is designed for high-performance networking, featuring 24 PoE+ RJ-45 ports and a maximum PoE budget of 840W. With a switching capacity of 320 Gbps and a forwarding rate of up to 190.5 Mpps, this switch can handle heavy network traffic efficiently. The MAC address table size of 64000 allows for seamless communication between devices on the network without any bottlenecks.

This switch also includes an expansion module slot for added flexibility in expanding your network as needed. Whether you are setting up a small office or large enterprise environment, the HPE Aruba JL073A provides reliable connectivity with robust performance capabilities to support your growing business needs.

Aruba JL073A: 24x Gigabit Ethernet RJ-45 PoE+, 1x RJ-45 serial console, 1x RJ-45 out-of-band management, 1x Dual-personality (RJ-45 or USB micro-B), 1 x Stacking module slot - Not Included - Sold Separately, 1 x Module Slot available - Supports a maximum of 4 SFP+ ports or 2 40 GbE ports, with optional module.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45
  • Product Family : Aruba 3810 Series
  • Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Gigabit Management, 1x mini-USB Type B Console, 1x USB/AUX
  • Stacking Ports : 1x Stacking Module Slot - The JL084A Stacking Module is not included - High-performance stacking provides up to 336 Gbps of stacking throughput; each 4-port stacking module can support up to 42 Gbps in each direction per stacking port
  • Module Slots and Options : 1x Expansion Module Slot - None Included - Options are - JL079A (2x 40GB QSFP+), JL078A (1x 40GB QSFP+), JL081A (4x 10GB SFP+), JL083A (4x 10GB SFP+)
  • Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m)
  • Fan Modules AirFlow Direction : 1x Aruba 3810 Switch Fan Tray (JL088A) Included
  • Power Supplies Included : 2x Slots (Min 1x Required) - Ordered Separately - options are - JL085A (250W AC), JL086A (680W AC), JL087A (1050W)
  • PoE Budget : 840W (Max)
  • Switching Capacity : 320 Gbps
  • Forwarding Rate : 190.5 Mpps
  • MAC Address Table Size : 64000
  • Latency : < 2.8 μS (FIFO 64-byte packets) (1000MB)
  • Rack Mounts : Included (1-RU)
  • Model Number : JL073A
  • Part Number : JL073A
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Aruba HPE JL073A 24x 1GB PoE+ RJ-45 1x Expansion Module Slot Switch as described above
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Power Supplies Not Included
