The Cisco Meraki MR45 is an indoor Wi-Fi 6 (802.11ax) access point managed from the Meraki Dashboard. Both client radios are 4x4 MU-MIMO with 4 spatial streams, on 2.4 GHz and 5 GHz, for an aggregate frame rate of up to 3.5 Gbps. A dedicated dual-band radio handles WIDS/WIPS, spectrum analysis, and location analytics, and a fourth radio provides Bluetooth Low Energy.
The uplink is one 2.5 Gigabit multigigabit RJ-45 port, so the AP is not held to Gigabit speed on a multigigabit switch. It requires 802.3at PoE+, with an 18W maximum draw, or a 12V DC adapter sold separately. Four internal omnidirectional antennas give 5.4 dBi of gain on 2.4 GHz and 6 dBi on 5 GHz.
With 4x4 on both bands, the MR45 suits offices, schools, hospitals, and stores with many clients per room. The unit measures 12.05 x 5.06 x 1.74 inches and weighs 28.22 oz. The MA-MNT-MR-15 mount kit is included for desk, wall, or ceiling installs.
For the later model in the same housing, see the MR46-HW. For 8x8 on 5 GHz and a 5GB uplink, the MR55-HW is the step up. A spare MA-MNT-MR-15 mount kit fits this AP. The access point is sold unclaimed; a Meraki license is required, purchased separately.
This seller refurbished Cisco Meraki MR45-HW access point is tested, working, and covered by the NetworkTigers one-year warranty.
- Wi-Fi Standard : Wi-Fi 6 (802.11ax)
- Managed By : Cisco Meraki Dashboard (cloud)
- Licensing : Unclaimed - Meraki license required, sold separately
- Suggested Use : Indoor - offices, schools, hospitals, shops (high density)
- Region : US (FCC)
- Radios : 2.4 GHz and 5 GHz client radios plus dual-band WIDS/WIPS scanning radio and BLE radio
- Spatial Streams per Radio : 4x4 MU-MIMO with 4 spatial streams on each band
- Maximum Data Rate : 3.5 Gbps aggregate
- Bluetooth / IoT Radios : BLE radio - beacon and BLE scanning
- PoE Standard : 802.3at PoE+ required (18W max)
- DC Power Input : 12V DC input (5.5 x 2.5 mm, center positive) - adapter sold separately
- Uplink Ports : 1x 100M/1G/2.5G multigigabit RJ-45
- Antenna Type : Internal omnidirectional - 5.4 dBi (2.4 GHz), 6 dBi (5 GHz)
- Antenna Ports : None (internal antennas)
- Mounting Options : Desk, wall, or ceiling - MA-MNT-MR-15
- Mounts Included : Yes - MA-MNT-MR-15 kit
- Model Number : MR45-HW
- Part Number : MR45-HW, MR45-HW=, MR45-HW-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco MR45-HW Meraki MR45 Series Wi-Fi 6 802.11ax Internal Omni-Directional Antenna Unclaimed (Includes MA-MNT-MR-15) Wireless Access Point as described above

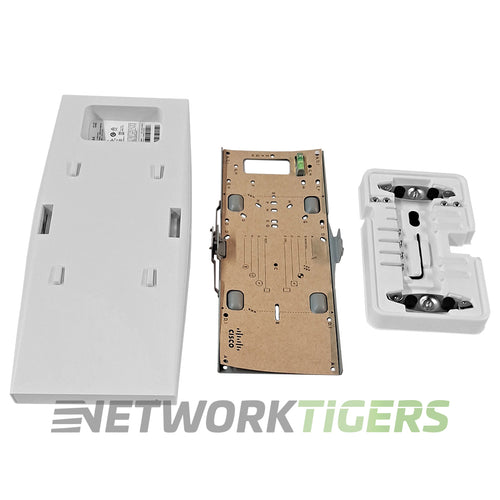

- One (1) Ceiling and One (1) Wall Mount Bracket Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
