Cisco Meraki MS22P-HW 24x 1GB PoE+ RJ45 4x 1GB SFP Unclaimed Switch

Cisco Meraki MS22P-HW 24x 1GB PoE+ RJ45 4x 1GB SFP Unclaimed Switch

$ 158.99
$ 149.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-6500 ASK FOR QUOTE
UPC: 810979011279

Overview

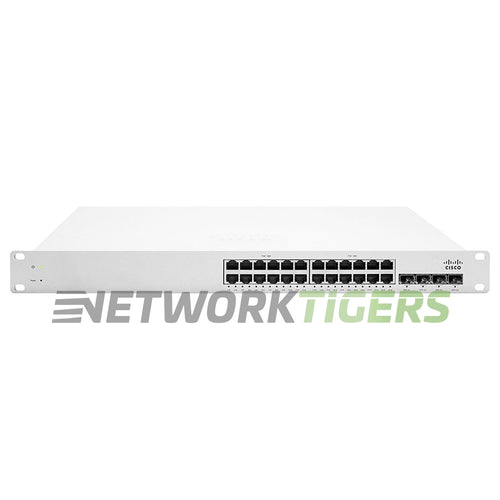

The Cisco Meraki MS22P-HW is a 24-port 1U PoE access switch from the first generation of Meraki cloud-managed switches. It has 24 Gigabit RJ-45 ports with PoE and four Gigabit SFP uplinks, and it is configured and monitored from the Meraki Dashboard.

The power supply is fixed and internal, and the chassis fits a standard 19-inch rack with integrated mounting brackets. The four SFP uplinks take fiber or copper SFP modules for the link back to the core or to another closet. There is no local console to configure; settings, port changes, and alerts all come from the Dashboard.

The MS22P is an economical way to add PoE ports to an existing Meraki network, for example to power phones, cameras, or access points in a small office or a store. It does not stack physically; virtual stacking in the Dashboard lets you change port settings across many switches at once.

For a later 24-port PoE+ model with a 370W budget, see the MS120-24P-HW, and for physical stacking, the MS210-24P-HW. For a fiber uplink, the MA-SFP-1GB-SX multimode SFP fits the uplink ports. The switch is sold unclaimed; a Meraki license is required, purchased separately.

This seller refurbished Cisco Meraki MS22P-HW switch is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 4x 1 Gigabit Ethernet SFP
  • Management Ports : Cloud Managed
  • Stacking Ports : None
  • Stacking Options : Virtual stacking in the Meraki Dashboard only - no physical stacking
  • Power Supplies Included : 1x Internal AC Power Supply
  • PoE Budget : 380W (All 24 ports at 15.4W per port 802.3af PoE simultaneously - Up to 12 ports at 30W per port 802.3at PoE+)
  • Switching Capacity : 48 Gbps
  • MAC Address Table Size : 8000
  • Latency : 2.5 microsecond
  • Model Number : MS22P-HW
  • Part Number : MS22P-HW, MS22P-HW=, MS22P-HW-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco Meraki MS22P-HW 24x 1GB PoE+ RJ45 4x 1GB SFP Unclaimed Switch as described above
  • One (1) Power Cord Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Licenses are sold directly by Meraki
