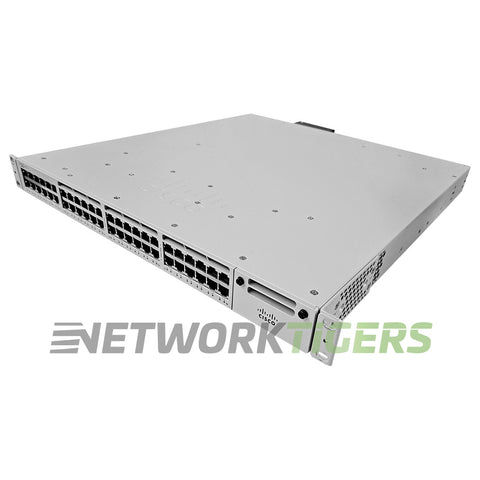

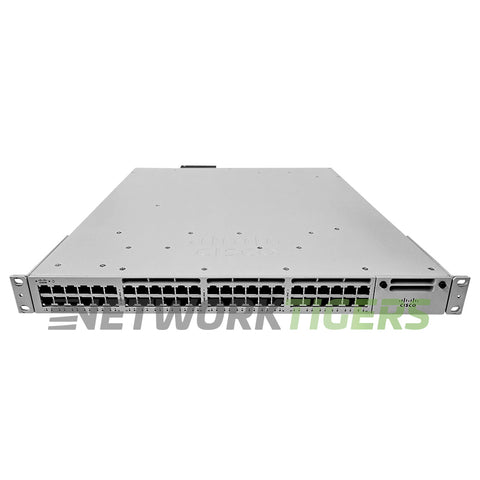

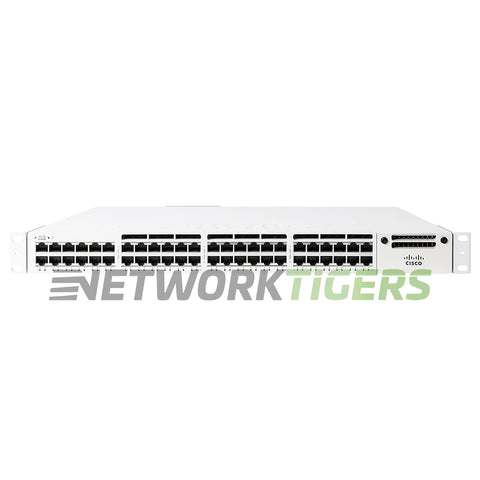

The Cisco Meraki MS390-48UX2-HW is a 1U Layer 3 access switch managed from the Meraki Dashboard. All 48 RJ-45 ports are UPoE Multigigabit and run at 100M, 1G, 2.5G, or 5G, and a modular slot provides the uplinks. Switching capacity is 640 Gbps with a 476.19 Mpps forwarding rate.
It ships with one MA-PWR-1100WAC power supply, which gives a 645W PoE budget. A second 715W supply raises it to 1,360W, and a second 1100W unit gives 1,745W. The chassis is 17.5 x 22.2 x 1.73 inches and weighs 20.05 lb.

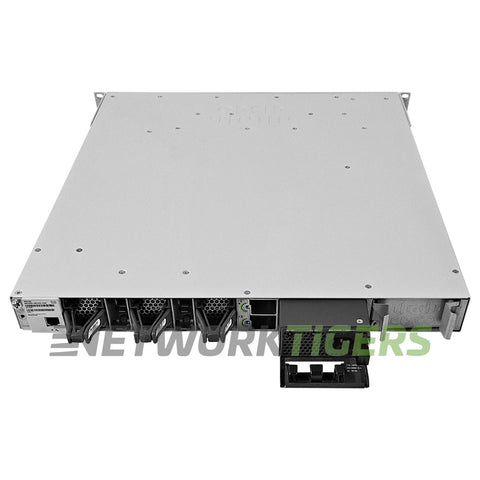

Uplinks come from one module slot: the MA-MOD-2X40G, MA-MOD-4X10G, or MA-MOD-8X10G, sold separately. Two 120G stack ports give 480 Gbps of stacking bandwidth across up to eight switches with MA-CBL-120G cables, and StackPower can share supply capacity across up to four switches. Three hot-swap MA-FAN-16K2 fans are installed, and rack mount brackets are in the box. The switch is sold unclaimed; a Meraki license is required, purchased separately.
A second MA-PWR-1100WAC power supply raises the PoE budget to 1,745W. For 10G Multigigabit ports, see the MS390-48UX-HW. The MA-MOD-2X40G 2x 40GB uplink module fits the module slot, and the MA-CBL-120G-1M stacking cable joins switches in a stack.
This Cisco Meraki MS390-48UX2-HW switch is new and covered by the NetworkTigers one-year warranty. The original packaging may have been opened to inspect the contents.
- Network Ports : 48x Multigigabit (100M/1G/2.5G/5G) UPoE RJ-45
- Uplink Ports : Via the uplink module slot (module not included)
- Management Ports : 1x dedicated RJ-45 management port
- Stacking Ports : 2x 120G stack ports
- Stacking Options : Up to 8 switches - 480 Gbps stacking bandwidth - StackPower ring of up to 4 switches
- Stacking Cable Options : MA-CBL-120G-50CM, MA-CBL-120G-1M, MA-CBL-120G-3M - not included
- Module Slots : 1x uplink module slot - module not included
- Module Options : MA-MOD-2X40G (2x 40G), MA-MOD-4X10G (4x 10G), MA-MOD-8X10G (8x 10G) - none included
- Fan Module Options : 3x MA-FAN-16K2 hot-swap fans included
- Power Supplies Included : 1x MA-PWR-1100WAC included - 2x power supply slots
- Power Supply Options : MA-PWR-715WAC, MA-PWR-1100WAC
- PoE Budget : 645W with the default 1100W PSU - 1360W with a second 715W PSU - 1745W with a second 1100W PSU
- Switching Capacity : 640 Gbps
- Forwarding Rate : 476.19 Mpps
- MAC Address Table Size : 32,000
- Model Number : MS390-48UX2-HW
- Part Number : MS390-48UX2-HW, MS390-48UX2-HW~, MS390-48UX2-HW-WS
- Condition : New
- One (1) NEW Cisco Meraki MS390-48UX2-HW 48x MultiGB UPoE RJ45 1x Slot Unclaimed Switch as described above
