NEW Cisco PWR-C1-715WAC-P Catalyst 9300 715WAC Platinum Switch Power Supply

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3158
UPC: 882658521904

Overview

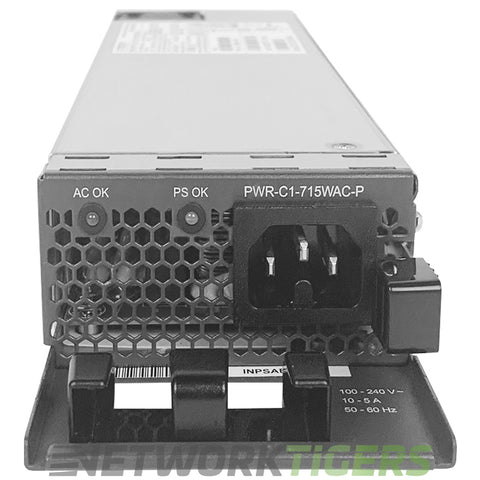

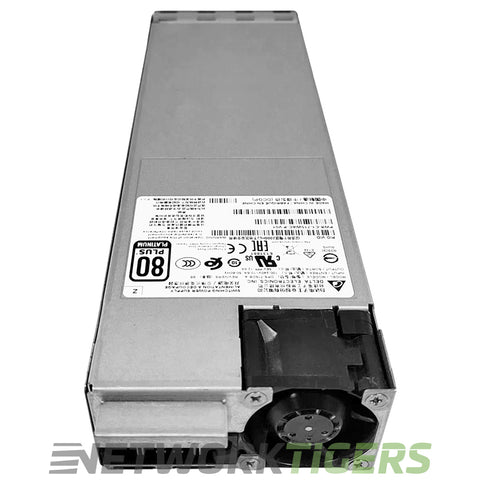

The Cisco PWR-C1-715WAC-P is the Platinum-rated 715 W AC power supply for the Catalyst 9300 Series. Cisco ships it as the default supply in the C9300-24P, C9300-48P, C9300-24S and C9300-48S, the C9300L 24- and 48-port PoE+ models, and the C9300X-12Y, C9300X-24Y and C9300X-48TX.

Input is 100 to 240 VAC (autoranging) at 47 to 63 Hz, and output is rated at -56 V at 12.8 A. On a C9300-24P it provides a 445 W PoE budget, and 437 W on a C9300-48P. The supply is hot-swappable.

This listing ships one power supply.

UPOE switches need the NEW Cisco PWR-C1-1100WAC-P 1100 W Platinum-rated power supply, and data-only switches can use the NEW Cisco PWR-C1-350WAC-P 350 W power supply. A typical host is the NEW Cisco C9300-48P-A 48-port PoE+ switch.

This Cisco PWR-C1-715WAC-P power supply is new open box and covered by the NetworkTigers one-year warranty.


Specifications

  • Power Capacity : 715 W
  • Input Voltage : 100 to 240 VAC
  • Output : -56V at 12.8A
  • Designed For : Cisco Catalyst 9300 Series Switch - C9300X-48TX, C9300X-24Y, C9300X-12Y, C9300-48P, C9300-24P, C9300-48S, C9300-24S, C9300L-24P-4G, C9300L-24P-4X, C9300L-48P-4G, C9300L-48P-4X
  • Power-supply Input Receptacles : IEC 320-C16 (IEC60320-C16)
  • Model Number : PWR-C1-715WAC-P
  • Part Number : PWR-C1-715WAC-P, PWR-C1-715WAC-P=, PWR-C1-715WAC-P-WS
  • Condition : New


Included

  • One (1) New Cisco PWR-C1-715WAC-P Catalyst 9300 Series 715WAC Platinum-Rated Switch Power Supply as described above
