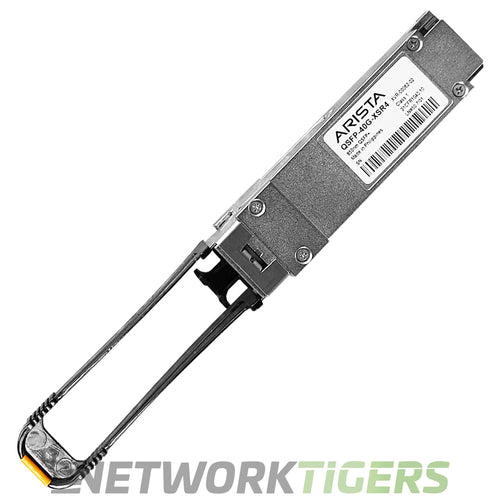

Arista QSFP-40G-XSR4 40GBASE-XSR4 850nm Short Reach MMF QSFP+ Transceiver

Arista QSFP-40G-XSR4 40GBASE-XSR4 850nm Short Reach MMF QSFP+ Transceiver

$ 23.99
$ 21.99
6 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-5333 ASK FOR QUOTE
UPC: 686907913942

Overview

The Arista QSFP-40G-XSR4 is a QSFP+ 40GBASE-XSR4 optical transceiver for 40G links over parallel multimode fiber. It transmits at 850nm. It reaches up to 300 meters on OM3 and 400 meters on OM4 and uses an MPO-12 UPC connector.

It is an extended-reach version of SR4 for longer multimode runs. Use a matching 40GBASE-XSR4 optic at the far end of the link unless Arista lists the pairing above, and use multimode patch cables of the grade your reach requires.

If you need a different reach, the QSFP-40G-UNIV 40G Universal transceiver and the QSFP-40G-SRBD 40GBASE-BIDI (SRBD) transceiver are also available. A new QSFP-40G-XSR4 is also available.

Arista publishes a transceiver compatibility guide that lists which switch platforms and EOS releases support each module, so check it for your switch before you order.

OM3 and OM4 multimode patch cables are normally aqua, and some OM4 cables are violet.

This seller refurbished QSFP-40G-XSR4 is covered by the NetworkTigers one-year warranty.


Specifications

  • Form Factor : QSFP+ optical transceiver
  • Speed : 40 Gbps
  • Wavelength : 850nm
  • Cable Type : parallel multimode fiber
  • Connection Type : MPO-12 UPC
  • Cable Distance : 300 meters on OM3 and 400 meters on OM4
  • Digital Optical Monitoring : Yes
  • Designed for : Arista switches with QSFP+ 40GB ports
  • Model Number : QSFP-40G-XSR4
  • Part Number : QSFP-40G-XSR4
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista QSFP-40G-XSR4 40GB BASE-XSR4 850nm Short Reach MMF QSFP+ Transceiver as described above

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
