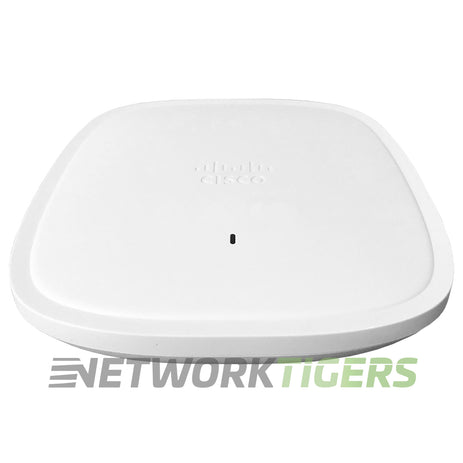

The Cisco C9130AXI-B Catalyst 9130AX is a Wi-Fi 6 MU-MIMO internal antenna wireless access point that operates on both the 2.4 GHz and 5 GHz frequencies. It supports data link protocols such as Multigigabit Ethernet, Gigabit Ethernet, IEEE 802.11ac, and more for high-speed connectivity.
With maximum data rates of up to multigigabit speeds through its ethernet ports, this WAP is designed to meet the demands of modern networking requirements in various environments across different industries with its US regulatory domain support ensuring compliance within the region.
Cisco C9130AXI-B: Cisco Catalyst 9130AX Series—Cisco Catalyst 9130AXI Access Point: This is for indoor environments with internal antennas.
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Managed By : Cisco wireless LAN controllers (Catalyst 9800 Series, or legacy 3504/5520/8540 and virtual controller)
- Licensing : High-density environments, general indoor deployment, supports Flexible Radio Assignment for on-demand client capacity scaling
- Region : US (Region B)
- Radios : 2x by default (dual-radio mode - one 8x8 5GHz, one 4x4 2.4GHz), software-splittable into tri-radio mode (two 4x4 5GHz plus one 4x4 2.4GHz) for increased client capacity
- Spatial Streams per Radio : 8x streams on 5GHz (or dual 4x4 in tri-radio mode), 4x streams on 2.4GHz, for 12x total combined in default dual-radio mode
- Maximum Data Rate : Up to 5.38 Gbps combined (8x8 80MHz or dual 4x4 80+80MHz on 5GHz, plus 4x4 20MHz on 2.4GHz)
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy (BLE) 5 radio for location-based use cases like asset tracking, wayfinding, and analytics
- PoE Standard : 802.3af sufficient for reduced 1x1/1x1 operation at 1G link speed, 802.3at (PoE+) required for 4x4/8x8 or dual 4x4/4x4 operation at 5G link speed, 802.3bt (Cisco UPOE) needed for full 4x4/8x8 operation with USB simultaneously enabled
- DC Power Input : N/A - PoE Only
- Uplink Ports : 1x Multigigabit Ethernet RJ-45 (100/1000/2500/5000)
- Other Ports : 1x Management console port RJ-45, 1x USB 2.0 at 4.5W
- Antenna Type : Integrated internal antennas, omnidirectional in azimuth, 2.4GHz at 4dBi peak gain, 5GHz at 6dBi peak gain
- Mounting Options : AIR-AP-BRACKET-1 (flush ceiling), AIR-AP-BRACKET-2 (universal/wall/NEMA), AIR-CHNL-ADAPTER (channel rail, 2-pack), AIR-AP-BRACKET-9= (mounts AXE to C-ANT9103 antenna).
- Mounts Included : None
- Model Number : C9130AXI-B
- Part Number : C9130AXI-B
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9130AXI-B Catalyst 9130AX 802.11ax Wi-Fi 6 MU-MIMO Internal Antenna WAP as described above
- One (1) Mount Bracket Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
